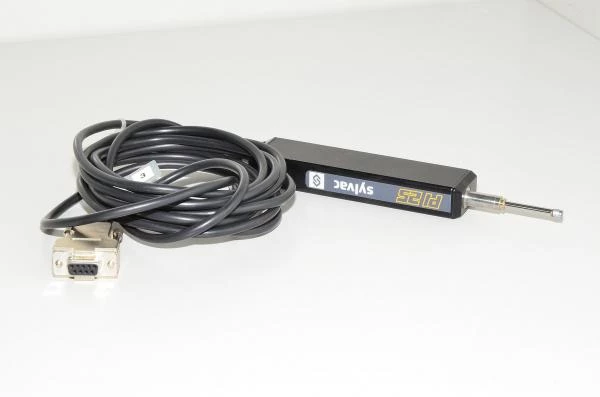

Sylvac PI 25 incremental measurement probe 25mm / 1"

Measuring gauge for various applications such as, measuring thickness, measuring alignment, surface height and many more.

Technical details

• Manufacturer:
  • Sylvac
• Model:
  • PI25
• Travel:
  • 25mm
• Resolution:
  • 1µm
• Accuracy:
  • +/-2,5µm
• Output cable connector:
  • DE-9F (Bi-directional RS232)
• Cable length:
  • 3m integrated
• Compact size ideal for designing into machines (WxHxL):
  • 18x30x200mm
• Mounting shaft diameter:
  • 8mm
• Mounting bracket thickness:
  • 15mm
• Feeler:
  • M2,5x0,45 screw fitting at the end

Download Sylvac PI25, PI50 and PI100 incremental measurement probe user manual

Download Sylvac PI25, PI50 and PI100 incremental measurement probe technical datasheet
