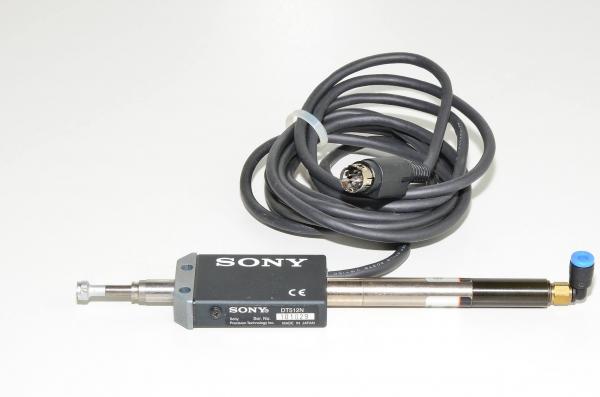

Sony / Magnescale DT512N 12mm measurement probe with DZ176 pneumatic cylinder

Measuring gauge for various applications such as, measuring thickness, measuring alignment, surface height and many more.

Technical details

• Manufacturer:
  • Sony / Magnescale
• Model:
  • DT512N
• Travel:
  • 12mm
• Accuracy:
  • +/-3µm
• Resolution:
  • 1µm
• Measuring force:
  • Upwards:
    • 0,7 +/- 0,5N
  • Lateral:
    • 0,8 +/- 0,5N
  • Downward:
    • 0,9 +/- 0,5N
• Reference points:
  • No
• Measuring system:
  • Magnetic principle (magnetoresistive)
• Max response speed:
  • 60m / min
• Air purge:
  • Not required
• Output cable connector:
  • Mini - DIN
• Cable length:
  • 2m integrated
• Compact size ideal for designing into machines (WxHxL):
  • 12x34x155mm / 0,47x1,34x6,09"
• Mounting shaft diameter:
  • 8mm
• Mounting bracket thickness:
  • 10mm
• Feeler:
  • M2,5x0,45 screw fitting at the end
• Guaranteed number of strokes:
  • 5 million

Download Sony LT10 and LT11 series diplay units technical datasheet

Download Magnescale digital gauge general catalog
