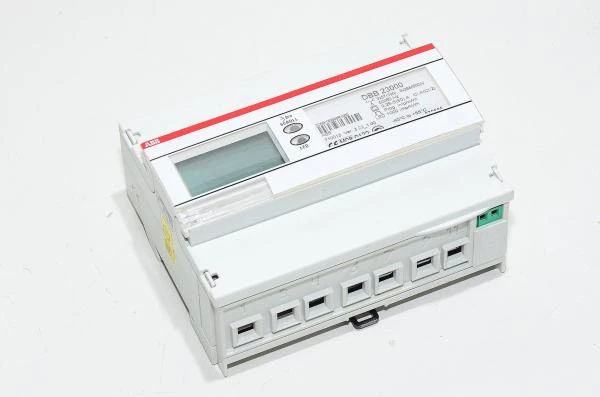

ABB Deltaplus DBB 23000 09808401 2CMA180840R1000 digital DIN rail mounted 3~ energy meter, class 2, 100-500VAC *new*

  • ABB Deltaplus DBB 23000 09808401 2CMA180840R1000 digital DIN rail mounted 3~ energy meter, class 2, 100-500VAC *new*
    ABB Deltaplus DBB 23000 09808401 2CMA180840R1000 digital DIN rail mounted 3~ energy meter, class 2, 100-500VAC *new* ABB Deltaplus DBB 23000 09808401 2CMA180840R1000 digital DIN rail mounted 3~ energy meter, class 2, 100-500VAC *new* ABB Deltaplus DBB 23000 09808401 2CMA180840R1000 digital DIN rail mounted 3~ energy meter, class 2, 100-500VAC *new*
  • Manufacturer:
    ABB
    ABB
  • Model:
    ABB Deltaplus DBB 23000 09808401 2CMA180840R1000 *new*
  • Dimension:
    123 x 98 x 65 mm
  • Weight:
    378 g
  • Availability: 1pcs
  • Condition: New
  • Price Including VAT: 232.18€

  • Ex Tax: 185€
pcs


Make an offer

Do you sell electricity or do you just want to measure consumption of some thing just for fun? Well with this you'll find out how much electricity is consumed/going somewhere.

Meter technical details:

  • Operating voltage range:
    • L-L 100...500VAC
    • L-N 57...280VAC
  • Accuracy:
    • Measurement accuracy class 2
  • Max rated current:
    • 80A
  • Current measurement method:
    • Direct measurement, ie phases are routed through meter
  • Energy measurement type:
    • Only active power/energy (ie no reactive power/energy (VA/VAR))
  • Measurements:
    • Energy:
      • kWh
    • Power:
      • kW
    • Current:
      • A
    • Voltage:
      • V
    • Frequency:
      • Hz
    • Power factor:
      • cos φ
  • Programming:
    • Via "Scroll" and "Set" buttons
  • Data interface:
    • Pulsed infrared port
    • kWh pulse output + blinking red LED (1000 impulses/kWh)
  • Display:
    • 7mm high LCD with 7 digits
  • Connections:
    • Screw terminals
  • Mounting:
    • 35mm DIN rail

Download ABB Deltaplus series DIN rail mounted electricity meters technical datasheet
