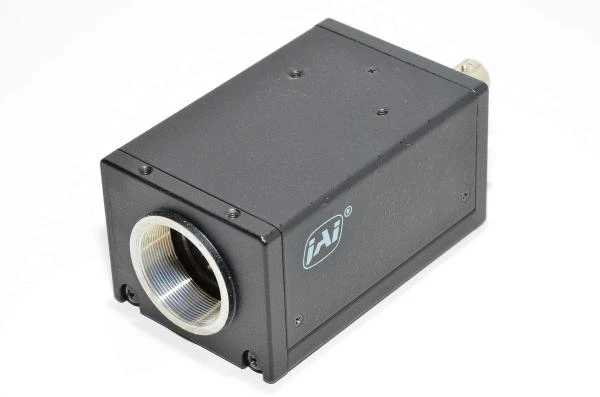

Jai CV-M50E solid state monochrome 1/2" CCTV camera with C-mount

Features and benefits

• High resolution monochrome 1/2" Hyper HAD IT CCD sensor
• Extreme sensitivity
• Improved dynamic range and smear performance
• High S/N ratio >56 dB
• Interlaced or non-interlaced scanning
• Field or frame integration mode
• Electronic or asynchronous shutter
• Long time exposure with external VD pulses
• HD/VD synchronization input or output. – TTL level
• Exposure enable (EEN) and write enable (WEN) output
• Sub-pixel accuracy possible
• Frame grabber friendly interface
• Rugged and compact construction

CS-mount can house C-mount lense if used 5mm adaptor ring. CS-mount focal point is (the distance between lens and the sensor) 12.5mm and C-mount has 17.526mm in between so this is why 5mm ring is needed when using C-lens in CS-mount.

Just to simplify this:

• CS-mount - CS-lens = ok
• CS-mount - (5mm adapter ring) C-lens = ok
• C-mount - C-lens = ok
• C-mount - CS-lens = no no

Suitable applications for camera:

• Industrial machine vision applications
• Surveillance
• Covert Installations
• Access Control
• Transportation Systems
• Gaming
• Robotic Vehicles
• Loss Prevention
• Image Processing

Download Jai CV-M50 machine vision camera operation manual
