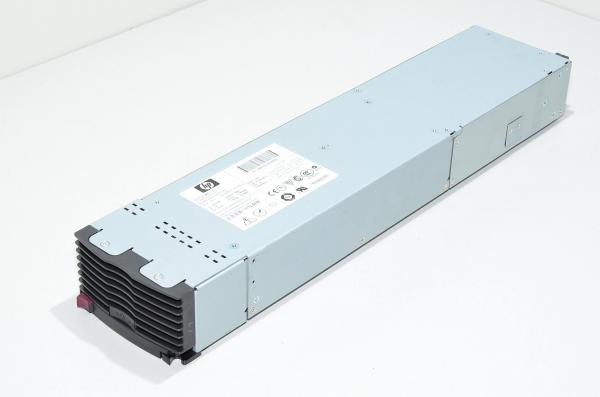

HP Compaq ESP120 HP part 226519-001 hot plug power supply for ProLiant BL P-class power enclosure, 2950W 51.4VDC 57A *new*

This is a hellish power supply capable of delivering ungodly amount of power. This SMPS (switching mode power supply) unit is intended for HP Compaq ProLiant BL P-class server power enclosure, but this thing can be used as is. If you need even more power we have a couple of those power enclosures (HP spare part 274843-001), which are fed with 2x 32A 3-phase power connections and can hold 6x pieces of these things in it.

Here is a couple of ideas on what you can do with this monster power supply:

• Use it as it is to power up HP Compaq BL35-series server hardware
• Modify it for your purposes such as (a fast Googling will reveal some modification instructions. As you might have guessed modification voids any kind of a warranty.):
  • Electric car battery charger
  • Large UPS battery charger
  • Adjustable power supply
  • Power supply for large current in the region of 50VDC
  • Power supply for electrolysis
  • Power supply for electrochemical plating
  • Audio amplifier power supply
• What ever you decide to do, do not kill yourself with this. We really want to have some business with you again in the future... And the point is, that there is high voltage present inside the power supply. Use a common sense, naturally primary side has some high voltages and even the 50V in the secondary side is something worth respecting. So know what you are doing!

We have a brand new units, which are still wrapped in packaging. This power supply represents the best cost to power ratio we can offer. Buy yours now!

Power supply technical specifications:

• Operating voltage:
  • 200...240VAC (50/60Hz)
• Max input current:
  • 20A
• Output:
  • 51 .4VDC
    • Max current:
      • 57A
  • 5VDC standby voltage
    • Max current:
      •  5A
• Model markings:
  • HP Compaq ESP120
  • HP part number 226519-001
  • HP replacement part number 253232-001
• Pinout:
  • Refer to the pinout picture
