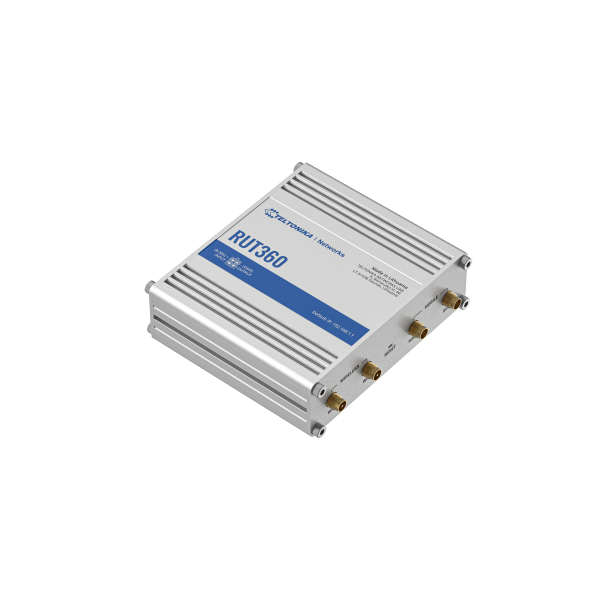

Teltonika RUT360 (RUT360000000) cellular router *new*

A successor of our best-selling RUT240, RUT360 keeps its compact shape in a rugged aluminum housing but offers more processing power and increased cellular speeds up to 300Mbps with Carrier Aggregation. Unique programming, remote monitoring, and security features make RUT360 perfect for IoT and M2M applications, where secure connectivity is required, but mobile data speeds are limited.

By default we have in stock/ship units with European firmware/configurations in them (main difference in varying frequency ranges and power supplies). If you need any other hardware revisions/power supplies, then contact us before ordering. Some resivions might have a different price and we need to know this requirement before we place an order for them to the factory.

RUT360000000 European unit (Europe, The Middle East, Africa, Australia, Brazil, Malaysia) supports the following bands:

• 4G (LTE-FDD):
  • B1, B3, B5, B7, B8, B20, B28, B32
• 4G (LTE-TDD):
  • B38, B40, B41
• 3G:
  • B1, B3, B5, B8

Standard package includes EU power supply

Router technical details:

• Mobile:
  • Mobile module:
    • 4G (LTE) – Cat 6 up to 300Mbps
    • 3G – up to 42Mbps
  • Status:
    • Signal strength (RSSI)
    • SINR
    • RSRP
    • RSRQ
    • EC/IO
    • RSCP
    • Bytes sent/received
    • Connected band
    • IMSI
    • ICCID
    • Carrier aggregation
  • SMS:
    • SMS status
    • SMS configuration
    • Send/read SMS via HTTP POST/GET
    • EMAIL to SMS
    • SMS to EMAIL
    • SMS to HTTP
    • SMS to SMS
    • Scheduled SMS
    • SMS autoreply
    • SMPP
  • USSD:
    • Supports sending and reading Unstructured Supplementary Service Data messages
  • Black/White list:
    • Operator black/white list
  • Multiple PDN:
    • Possibility to use different PDNs for multiple network access and services
  • Band management:
    • Band lock
    • Used band status display
  • APN:
    • Auto APN
  • Bridge:
    • Direct connection (bridge) between mobile ISP and device on LAN
  • Pass through:
    • Router assigns its mobile WAN IP address to another device on LAN
• Wireless:
  • Wireless mode:
    • IEEE 802.11b/g/n
    • Access Point (AP)
    • 2x2 MIMO
    • Station (STA)
  • Wi-Fi security:
    • WPA3-EAP
    • WPA3-SAE
    • WPA2-Enterprise-PEAP
    • WPA2-PSK
    • WEP; AES-CCMP
    • TKIP
    • Auto cipher modes
    • client separation
  • SSID/ESSID:
    • ESSID stealth mode
  • Wireless Hotspot:
    • Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes.
  • Wireless Connectivity Features:
    • Wireless mesh (802.11s)
    • Fast roaming (802.11r)
    • Relayd
  • Wireless MAC filter:
    • Whitelist
    • Blacklist
• Ethernet:
  • WAN:
    • 1x WAN port 10/100Mbps
    • Compliance with:
      • IEEE 802.3
      • IEEE 802.3u
    • Supports auto MDI/MDIX
  • LAN:
    • 1x LAN port 10/100Mbps
    • Compliance with:
      • IEEE 802.3
      • IEEE 802.3u
    • Supports auto MDI/MDIX crossover
• Network:
  • Routing:
    • Static routing
    • Dynamic routing BGP
    • OSPF v2
    • RIP v1/v2
    • EIGRP
    • NHRP
    • Policy based routing
  • Network protocols:
    • TCP
    • UDP
    • IPv4
    • IPv6
    • ICMP
    • NTP
    • DNS
    • HTTP
    • HTTPS
    • SFTP
    • FTP
    • SMTP
    • SSL/TLS
    • ARP
    • VRRP
    • PPP
    • PPPoE
    • UPNP
    • SSH
    • DHCP
    • Telnet
    • SMPP
    • SMNP
    • MQTT
    • Wake On Lan (WOL)
  • VoIP pass through support:
    • H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
  • Connection monitoring:
    • Ping Reboot
    • Wget Reboot
    • Periodic Reboot
    • LCP and ICMP for link inspection
  • Firewall:
    • Port forward
    • Traffic rules
    • Custom rules
  • DHCP:
    • Static and dynamic IP allocation
    • DHCP Relay
  • QoS / Smart Queue Management (SQM):
    • Traffic priority queuing by source/destination
    • Service
    • Protocol or port
    • WMM, 802.11e
  • DDNS:
    • Supported >25 service providers, others can be configured manually
  • Network backup:
    • Wi-Fi WAN
    • Mobile
    • VRRP
    • Wired options, each of which can be used as an automatic fail over
  • Load balancing:
    • Balance Internet traffic over multiple WAN connections
  • SSHFS:
    • Possibility to mount remote file system via SSH protocol
• Security:
  • Authentication:
    • Pre-shared key
    • Digital certificates
    • X.509 certificates
    • TACACS+
    • Radius
    • IP & Login attempts block
  • Firewall:
    • Pre-configured firewall rules can be enabled via WebUI
    • Unlimited firewall configuration via:
      • CLI
      • DMZ
      • NAT
      • NAT-T
  • Attack prevention:
    • DDOS prevention:
      • SYN flood protection
      • SSH attack prevention
      • HTTP/HTTPS attack prevention
    • Port scan prevention:
      • SYN-FIN
      • SYN-RST
      • X-mas
      • NULL flags
      • FIN scan attacks
  • VLAN:
    • Port and tag-based VLAN separation
  • Mobile quota control:
    • Mobile data limit
    • Customizable period
    • Start time
    • Warning limit
    • Phone number
  • Web filter:
    • Blacklist for blocking out unwanted websites
    • Whitelist for specifying allowed sites only
  • Access control:
    • Flexible access control of TCP
    • UDP
    • ICMP packets
    • MAC address filter
• VPN:
  • OpenVPN:
    • Multiple clients and a server can run simultaneously
  • OpenVPN encryption:
    • DES-CBC 64
    • RC2-CBC 128
    • DES-EDE-CBC 128
    • DES-EDE3-CBC 192
    • DESX-CBC 192
    • BF-CBC 128
    • RC2-40-CBC 40
    • CAST5-CBC 128
    • RC2-64-CBC 64
    • AES-128-CBC 128
    • AES-128-CFB 128
    • AES-128-CFB1 128
    • AES-128-CFB8 128
    • AES-128-OFB 128
    • AES-128-GCM 128
    • AES-192-CFB 192
    • AES-192-CFB1 192
    • AES-192-CFB8 192
    • AES-192-OFB 192
    • AES-192-CBC 192
    • AES-192-GCM 192
    • AES-256-GCM 256
    • AES-256-CFB 256
    • AES-256-CFB1 256
    • AES-256-CFB8 256
    • AES-256-OFB 256
    • AES-256-CBC 256
  • IPsec:
    • IKEv1
    • IKEv2
  • Encryption methods for IPsec:
    • 3DES
    • DES
    • AES128
    • AES192
    • AES256
    • AES128GCM8
    • AES192GCM8
    • AES256GCM8
    • AES128GCM12
    • AES192GCM12
    • AES256GCM12
    • AES128GCM16
    • AES192GCM16
    • AES256GCM16
  • GRE:
    • GRE tunnel
    • GRE tunnel over IPsec support
  • PPTP, L2TP:
    • Client/Server instances can run simultaneously
    • L2TPv3
    • L2TP over IPsec support
  • Stunnel:
    • Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
  • DMVPN:
    • Method of building scalable IPsec VPNs
  • SSTP:
    • SSTP client instance support
  • ZeroTier:
    • ZeroTier VPN client support
  • WireGuard:
    • WireGuard VPN client and server support
  • Tinc:
    • Tinc offers encryption, authentication and compression in its tunnels
    • Client and server support
• MODBUS TCP slave:
  • ID range:
    • Respond to one ID in range [1;255] or any
  • Allow Remote Access:
    • Allow access through WAN
  • Custom registers:
    • MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP slave functionality.
• MODBUS TCP master:
  • Supported functions:
    • 01, 02, 03, 04, 05, 06, 15, 16
  • Supported data formats:
    • 8-bit: INT
    • UINT; 16-bit: INT
    • UINT (MSB or LSB first); 32-bit: float
    • INT
    • UINT (ABCD (big-endian)
    • DCBA (little-endian)
    • CDAB
    • BADC
• Data to server:
  • Protocol:
    • HTTP(S)
    • MQTT
    • Azure MQTT
    • Kinesis
• MQTT Gateway:
  • MQTT Gateway:
    • Allows sending commands and receiving data from MODBUS Master through MQTT broker
• DNP3:
  • Supported modes:
    • TCP master
    • DNP3 outstation
• Monitoring & management:
  • WEB UI:
    • HTTP/HTTPS
    • status
    • configuration
    • FW update
    • CLI
    • Troubleshoot
    • Event log
    • System log
    • Kernel log
  • FOTA:
    • Firmware update from server
    • Automatic notification
  • SSH:
    • SSH (v1, v2)
  • SMS:
    • SMS status
    • SMS configuration
    • Send/read SMS via HTTP POST/GET
  • Call:
    • Reboot
    • Status
    • Mobile data on/off
    • Output on/off
    • answer/hang-up with a timer
    • Wi-Fi on/off
  • TR-069:
    • OpenACS
    • EasyCwmp
    • ACSLite
    • tGem
    • LibreACS
    • GenieACS
    • FreeACS
    • LibCWMP
    • Friendly tech
    • AVSystem
  • MQTT:
    • MQTT Broker
    • MQTT publisher
  • SNMP:
    • SNMP (v1, v2, v3)
    • SNMP Trap
  • JSON-RPC:
    • Management API over HTTP/HTTPS
  • MODBUS:
    • Modbus TCP status/control
  • RMS:
    • Teltonika Remote Management System (RMS)
• IoT Platforms:
  • Cloud of Things:
    • Allows monitoring of:
    • Device data
    • Mobile data
    • Network info
    • Availability
  • ThingWorx:
    • Allows monitoring of:
    • WAN Type
    • WAN IP
    • Mobile Operator Name
    • Mobile Signal Strength
    • Mobile Network Type
  • Cumulocity:
    • Allows monitoring of:
    • Device model
    • Revision and serial number
    • WAN Type and IP
    • Mobile cell ID
    • ICCID
    • IMEI
    • Connection type
    • Operator
    • Signal strength
  • Azure IoT Hub:
    • Can send device IP
    • Number of bytes sent/received
    • Temperature
    • PIN count to Azure IoT Hub server
    • Mobile connection state
    • Network link state
    • IMEI
    • ICCID
    • Model
    • Manufacturer
    • Serial
    • Revision
    • IMSI
    • SIM State
    • PIN state
    • GSM signal
    • WCDMA RSCP
    • WCDMA EC/IO
    • LTE RSRP
    • LTE SINR
    • LTE RSRQ
    • CELL ID
    • Operator
    • Operator number
    • Connection type
• System characteristics:
  • CPU:
    • QCA9531
    • MIPS 24kc, 650MHz
  • RAM:
    • 128 MB DDR2
  • FLASH storage:
    • 16 MB
    • SPI Flash
• Firmware / Configuration:
  • WEB UI:
    • Update FW from file
    • Check FW on the server
    • Configuration profiles
    • Configuration backup
  • FOTA:
    • Update FW
  • RMS:
    • Update FW/configuration for multiple devices at once
  • Keep settings:
    • Update FW without losing the current configuration
• Firmware Customization:
  • Operating system:
    • RutOS (OpenWrt based Linux OS)
  • Supported languages:
    • Busybox shell
    • Lua
    • C
    • C++
  • Development tools:
    • SDK package with build environment provided
• Input / Output:
  • Input:
    • 1x digital input
    • 0...6V detected as logic low
    • 8...30V detected as logic high
  • Output:
    • 1x digital output
    • Open collector output
    • max output 30V
    • 300mA
  • Events:
    • Email
    • RMS
    • SMS
  • I/O juggler:
    • Allows setting certain I/O conditions to initiate events
• Power:
  • Connector:
    • 1x 4-pin Molex Micro-Fit 3.0 power connector:
      • Compatible with Molex Micro-Fit 3.0 0430250400 connector housing
  • Input voltage range:
    • 9...30VDC
    • Reverse polarity protection
    • Surge protection >31VDC 10us max
  • Power consumption:
    • 10,5W max
• Physical interfaces:
  • Ethernet:
    • 2x RJ45 ports 10/100Mbps
  • I/O’s:
    • 1x digital input
    • 1x digital output on 4-pin power connector
  • Status LEDs:
    • 2x Mobile connection type
    • 3x Mobile connection strength
    • 2x Eth status
    • 1x Power
  • SIM:
    • 1x SIM slot (Mini SIM – 2FF)
    • 1.8V/3V
    • external SIM holder
  • Power:
    • 1x 4-pin Molex Micro-Fit 3.0 power connector
      • Compatible with Molex Micro-Fit 3.0 0430250400 connector housing
  • Antennas:
    • 2  SMA for LTE
    • 2x RP-SMA for Wi-Fi antenna connectors
  • Reset:
    • Reboot/User default reset/Factory reset button
• Physical specification:
  • Casing material:
    • Aluminum housing
  • Mounting options:
    • 35mm DIN rail
    • Flat surface placement
• Operating environment:
  • Operating temperature:
    • -40...75°C
  • Operating humidity:
    • 10% to 90% non-condensing
  • Ingress protection rating:
    • IP30

Download Teltonika RUT360 cellular router technical datasheet
