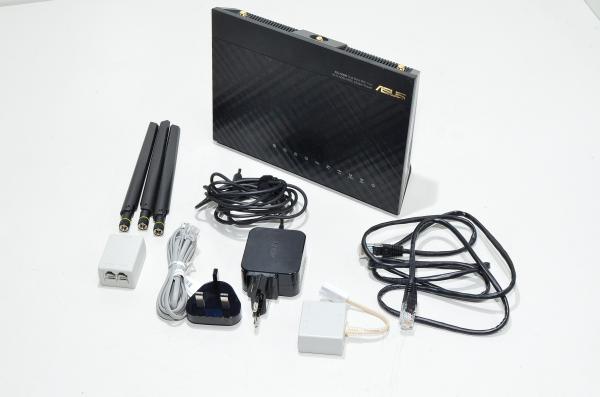

Asus DSL-AC68U dual-band AC1900 LTE Wi-Fi modem router

DSL-AC68U is best suited for quick Internet connectivity in DSL-free residential areas and provides fast mobile Internet access. The 4G Router works well with various devices such as PCs, tablets, and home network smartphones.

Router technical details:

• Model:
  • DSL-AC68U
• Network standards:
  • IEEE 802.11a
  • IEEE 802.11b
  • IEEE 802.11g
  • WiFi 4 (802.11n)
  • WiFi 5 (802.11ac)
  • IPv6
• WiFi data rate:
  • 802.11a:
    • Up to 54Mbps
  • 802.11b:
    • Up to 11Mbps
  • 802.11g:
    • Up to 54Mbps
  • WiFi 4 (802.11n):
    • Up to 450Mbps
  • WiFi 4 (802.11n) TurboQAM:
    • Up to 600Mbps
  • WiFi 5 (802.11ac):
    • Up to 1300Mbps
• xDSL data rate:
  • VDSL2
  • ADSL2+
  • ADSL2
  • ADSL multimode
  • Up to100Mbps/100Mbps upstream/downstream
  • Support:
    • Annex A
    • Annex B
    • Annex I
    • Annex J
    • Annex L
    • Annex M
  • Support profiles:
    • VDSL2 8a
    • VDSL2 8b
    • VDSL2 8c
    • VDSL2 8d
    • VDSL2 12a
    • VDSL2 12b
    • VDSL2 17a
    • VDSL2 30a
  • VDSL2 interface compliance:
    • ITU-T993.2
    • G.992.1 (G.dmt):
      • Annex A
      • Annex B
    • G.992.2 (G.lite):
      • Annex A
      • Annex B
    • ANSI T1.413
    • G.992.3 (ADSL2):
      • Annex A
      • Annex B
      • Annex L
      • Annex M
    • G.992.5 (ADSL2+):
      • Annex A
      • Annex B
      • Annex M
    • G.993.2
    • Annex A
    • Annex B
    • Up to profile 30a with external AFE.
    • G.993.5 (Vectoring)
    • ATM and PTM (dual-priority)
• Antenna:
  • 3x external antenna
• I/O ports:
  • 1x RJ11 for xDSL
  • 4x RJ45 10/100/1000/Gigabits BaseT for LAN
  • 1x USB 3.0
• LED indicator:
  • Power
  • Internet
  • 4x LAN
  • xDSL
  • 2.4GHz Wi-Fi
  • 5GHz Wi-Fi
• Security:
  • WPS
  • SSH
  • Firewall:
    • Maximum firewall keyword filter:
      • 64
    • Maximum firewall network service filter:
      • 32
    • Maximum firewall URL filter:
      • 64
• WLAN:
  • Dual WLAN
  • 3G / 4G LTE dongle
  • 4G / 5G auto mobile tethering
  • Port forwarding:
    • Maximum Port Forwarding Rule:
      • 64
  • Port triggering:
    • Maximum port triggering rule:
      • 32
  • DMZ
  • DDNS
• LAN:
  • DHCP server
  • IGMP snooping
  • IPTV
  • Manually assign IP address:
    • Maximum manually assign IP Address Rule:
      • 64
  • Wake on LAN (WOL)
• Wireless:
  • UTF-8 SSID
  • WiFi MAC address filter:
    • •Maximum MAC Filters:
      • 64
  • Wireless scheduler
  • Airtime fairness
  • RADIUS server
  • Universal beamforming
  • Explicit beamforming
• Power consumption:
  • 12W
• Power supply:
  • AC:
    • 100...240VAC
  • DC:
    • 19VDC 1,75A
