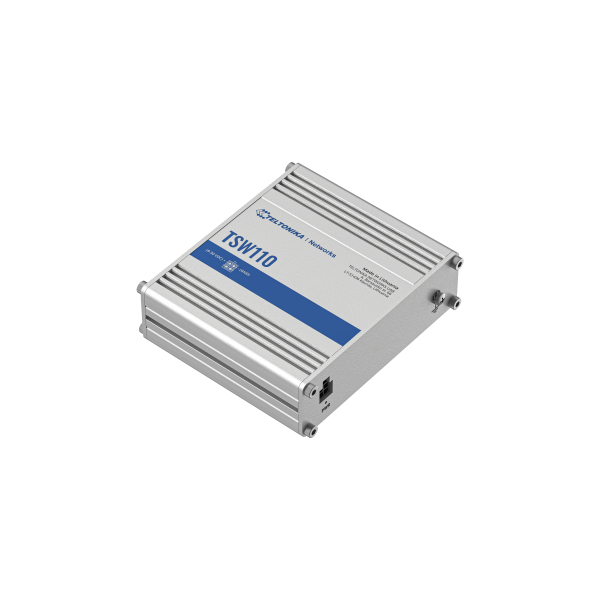

Teltonika TSW110 (TSW110000000) L2 unmanaged switch *new*

L2 unmanaged switch.

By default we have in stock/ship units with European firmware/configurations in them (main difference in varying frequency ranges and power supplies). If you need any other hardware revisions/power supplies, then contact us before ordering. Some resivions might have a different price and we need to know this requirement before we place an order for them to the factory.

TSW110000000 unit supports the following bands:

• N/A

Standard package includes EU power supply

Unmanaged switch technical details:

• Ethernet:
  • ETH:
    • 5x ETH ports, 10/100/1000Mbps
    • Supports auto MDI/MDIX crossover
  • IEEE 802.3 series standards:
    • 802.3i
    • 802.3u
    • 802.3ab
    • 802.3x
    • 802.3az
• Performance specifications:
  • Bandwidth (Non-blocking):
    • 10Gbps
  • MAC address table size:
    • 2K entries
  • Packer buffer:
    • 128Kb
• Power:
  • Connector:
    • 1x 4-pin Molex Micro-Fit 3.0 power connector:
      • Compatible with Molex Micro-Fit 3.0 0430250400 connector housing

  • Input voltage range:
    • 9...30VDC
  • PoE (passive):
    • Possibility to power up through ETH1 ports,
    • Not compatible with following standards:
      • IEEE 802.3af
      • IEEE 802.3at
      • IEEE 802.3bt
      • Mode B
      • 9...30VDC
  • Power consumption:
    • < 0.4W/ < 1.8W
• Physical interfaces:
  • Ethernet:
    • 5x RJ45 ports 10/1001000Mbps
  • Status LEDs:
    • 10x LAN status LEDs
    • 1x Power LED
  • Power:
    • 1x 4-pin Molex Micro-Fit 3.0 power connector:
      • Compatible with Molex Micro-Fit 3.0 0430250400 connector housing
  • Other:
    • 1x grounding screw
• Physical specification:
  • Casing material:
    • Aluminum housing
  • Mounting options:
    • 35mm DIN rail or wall mounting (additional kit needed)
    • Flat surface placement
• Operating environment:
  • Operating temperature:
    • -40...75°C
  • Operating humidity:
    • 10% to 90% non-condensing
  • Ingress protection rating:
    • IP30

Download Teltonika TSW110 L2 unmanaged switch technical datasheet
