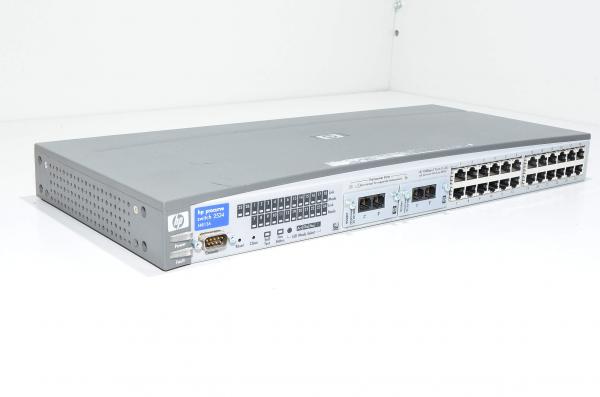

HP ProCurve 2524 J4813A managed network switch + 2x J4853A 100-FX SC tranceiver modules

  • HP ProCurve 2524 J4813A managed network switch + 2x J4853A 100-FX SC tranceiver modules
    HP ProCurve 2524 J4813A managed network switch + 2x J4853A 100-FX SC tranceiver modules HP ProCurve 2524 J4813A managed network switch + 2x J4853A 100-FX SC tranceiver modules
  • Manufacturer:
    HP (Hewlett Packard)
    HP (Hewlett Packard)
  • Model:
    HP ProCurve 2524 J4813A + 2x J4853A
  • Dimension:
    443 x 205 x 44 mm
  • Weight:
    2730 g
  • Availability: 1pcs
  • Condition: Used
  • Price Including VAT: 18.83€

  • Ex Tax: 15€
pcs


Make an offer

The ProCurve Switch 2500 series consists of low-cost, stackable, managed 24- and 12-port switches. Switch has 10/100 auto-sensing per port and 2 open transceiver slots for Gigabit or 100Base-FX. ProCurve Switches 2524 and 2512 offer ProCurve/IEEE Auto-MDIX on all 10/100 ports, as well as high-availability features. ProCurve Switches 2524 and 2512 are ideal for low-cost migration to 10/100 managed switching which is equipped with uplinks.

Switch has web based management and console connection through RS-232 port.

Download HP ProCurve 2500 series switches technical datasheet

Download HP ProCurve 2500 series switches management and configuration guide

Ethernet switches
10/100Mbps ports 24x
Address Table 4096 entries
Energy-Efficient Ethernet Not present
Fan cooling Yes
Flow Control Check standards
Operating environment Operating: 0...55°C Humidity: 15% to 95%, (Non-condensing) Storage: -40...70°C Humidity: 15% to 90%, (Non-condensing)
Packet Buffer 6MB (Flash memory 2MB, RAM/ROM 26MB)
Power Consumption - Dissipation 36W - max 123BTU/h
Power Requirements 100...127V 2.4A / 200...240VAC 1.2A, 50/60Hz
Regulation Compliance FCC Class A EN 55022/CISPR-22 Class A VCCI Class A HP759, HP760 (similar to EN 60068, IEC 68) cUL (CSA 950) EN 60950/IEC 60950 NOM-019-SCFI-1994 UL 1950 3rd edition EN 50082-1 IEC/EN 61000-4-2; 4 kV CD, 8 kV AD IEC/EN 61000-4-3; 3V/m IEC/EN 61000-4-4; 1.0 kV (power line), 0.5 kV (signal line)
Standards IEEE 802.3x Flow Control RFC 3376 IGMPv1/v2/v3 IEEE 802.1D Spanning Tree IEEE 802.1w Rapid Convergence Spanning Tree IEEE 802.3ad Link Aggregation Control Protocol Cisco Fast EtherChannel® (FEC) RFC 1492 TACACS+ IEEE 802.1X Network Login IEEE 802.1Q VLANs IEEE 802.1Q GVRP IEEE 802.1p Priority SNMPv1/v2c Cisco Discovery Protocol v1 (CDPv1) RFC 1493 Bridge MIB RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm), and 9 (events) RFC 3164 Syslog XRMON RFC 2613 SMON RFC 2674 802.1p IEEE 802.1Q Bridge MIB
Switch Fabric 9.6Gbps
Switch Processing Scheme -
Throughput (packets per second) 4.8 million pps (64-byte packets)

Write a review

Please login or register to review

Tags: 24 ports, half duplex, 10/100Base-TX, Hewlett Packard, ProCurve-series, 100-FX, SC, fiber optical, fiber optic, Auto-MDIX, HP, 10mbps, 100mbps, LAN, 100mbits, 10/100mbps, 10mbits, switch, Ethernet, 9.6Gbps, 10/100mbits, full duplex, network, 19", 19" rackmountable, 19" rackmount, 19" rack device
