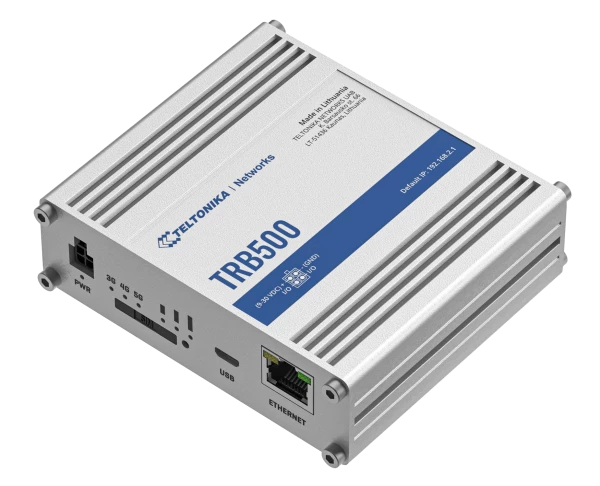

Teltonika TRB500 (TRB500000000) 5G gateway *new*

Industrial 5G gateway.

By default we have in stock/ship units with European firmware/configurations in them (main difference in varying frequency ranges and power supplies). If you need any other hardware revisions/power supplies, then contact us before ordering. Some resivions might have a different price and we need to know this requirement before we place an order for them to the factory.

TRB500000000 European unit (Europe, The Middle East, Africa, Oceania, Brazil) supports the following bands:

• 5G NR NSA:
  • n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77
• 5G NR SA:
  • n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78
• 4G (LTE-FDD):
  • B1, B3, B5, B7, B8, B20, B28, B32
• 4G (LTE-TDD):
  • B38, B40, B41, B42, B43
• 3G:
  • B1, B5, B8

Standard package includes EU power supply

Gateway technical details:

• Mobile:
  • Mobile module:
    • 5G Sub-6Ghz SA/NSA 2.1/3.3Gbps DL (4x4 MIMO), 900/600 Mbps UL (2x2)
    • 4G (LTE) – LTE Cat 20 2.0Gbps DL, 200Mbps UL
    • 3G – 42 Mbps DL, 5.76Mbps UL
  • Status:
    • Signal strength (RSSI)
    • SINR
    • RSRP
    • RSRQ
    • EC/IO
    • RSCP
    • Bytes sent/received
    • Connected band
    • IMSI
    • ICCID
  • SMS:
    • SMS status
    • SMS configuration
    • Send/read SMS via HTTP POST/GET
    • EMAIL to SMS
    • SMS to EMAIL
    • SMS to HTTP
    • SMS to SMS
    • Scheduled SMS
    • SMS autoreply
    • SMPP
  • USSD:
    • Supports sending and reading Unstructured Supplementary Service Data messages
    • Black/White list:
      • Operator black/white list
  • Multiple PDN:
    • Possibility to use different PDNs for multiple network access and services
  • Band management:
    • Band lock
    • Used band status display
  • SIM idle protection service:
    • When working with devices with two SIM slots, the one not currently in use will remain idle until the device switches to it, meaning that no data is used on the card until then.
  • APN:
    • Auto APN
  • Bridge:
    • Direct connection (bridge) between mobile ISP and device on LAN
  • Pass through:
    • Router assigns its mobile WAN IP address to another device on LAN
• Ethernet:
  • LAN:
    • 1x LAN port, 10/100/1000Mbps
    • Supports auto MDI/MDIX
• Network:
  • Hotspot:
    • Captive portal (Hotspot)
    • Internal/external Radius server
    • SMS authorization
    • Internal/external landing page
    • Walled garden
    • User scripts
    • URL parameters
    • User groups
    • individual user or group limitations
    • user management
    • 9 default customizable themes and option to upload and download customised hotspot themes
  • Routing:
    • Static routing
    • Dynamic routing:
      • BGP
      • OSPF v2
      • RIP v1/v2
      • EIGRP
      • NHRP
    • Policy based routing
  • Network protocols:
    • TCP
    • UDP
    • IPv4
    • IPv6
    • ICMP
    • NTP
    • DNS
    • HTTP
    • HTTPS
    • SFTP
    • FTP
    • SMTP
    • SSL/TLS
    • ARP
    • VRRP
    • PPP
    • PPPoE
    • UPNP
    • SSH
    • DHCP
    • Telnet
    • SMPP
    • SMNP
    • MQTT
    • Wake On Lan (WOL)
  • VoIP pass through support:
    • H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
  • Connection monitoring:
    • Ping Reboot
    • Wget Reboot
    • Periodic Reboot
    • LCP and ICMP for link inspection
  • Firewall:
    • Port forward
    • Traffic rules
    • Custom rules
  • Firewall status page:
    • View all your Firewall statistics, rules, and rule counters.
  • Ports management:
    • View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on.
  • Network topology:
    • Visual representation of your network, showing which devices are connected to which other devices.
  • DHCP:
    • Static and dynamic IP allocation
    • DHCP Relay
  • QoS / Smart Queue Management (SQM):
    • Traffic priority queuing by source/destination
    • Service
    • Protocol or port
    • WMM, 802.11e
  • DDNS:
    • Supported >25 service providers, others can be configured manually
  • Network backup:
    • Wi-Fi WAN
    • Mobile
    • VRRP
    • Wired options, each of which can be used as an automatic fail over
  • Load balancing:
    • Balance Internet traffic over multiple WAN connections
  • SSHFS:
    • Possibility to mount remote file system via SSH protocol
• Security:
  • Authentication:
    • Pre-shared key
    • Digital certificates
    • X.509 certificates
    • TACACS+
    • Radius
    • IP & Login attempts block
  • Firewall:
    • Pre-configured firewall rules can be enabled via WebUI
    • Unlimited firewall configuration via:
      • CLI
      • DMZ
      • NAT
      • NAT-T
  • Attack prevention:
    • DDOS prevention:
      • SYN flood protection
      • SSH attack prevention
      • HTTP/HTTPS attack prevention
    • Port scan prevention:
      • SYN-FIN
      • SYN-RST
      • X-mas
      • NULL flags
      • FIN scan attacks
  • VLAN:
    • Port and tag-based VLAN separation
  • Mobile quota control:
    • Mobile data limit
    • Customizable period
    • Start time
    • Warning limit
    • Phone number
  • Web filter:
    • Blacklist for blocking out unwanted websites
    • Whitelist for specifying allowed sites only
  • Access control:
    • Flexible access control of TCP
    • UDP
    • ICMP packets
    • MAC address filter
• VPN:
  • OpenVPN:
    • Multiple clients and a server can run simultaneously
  • OpenVPN encryption:
    • DES-CBC 64
    • RC2-CBC 128
    • DES-EDE-CBC 128
    • DES-EDE3-CBC 192
    • DESX-CBC 192
    • BF-CBC 128
    • RC2-40-CBC 40
    • CAST5-CBC 128
    • RC2-64-CBC 64
    • AES-128-CBC 128
    • AES-128-CFB 128
    • AES-128-CFB1 128
    • AES-128-CFB8 128
    • AES-128-OFB 128
    • AES-128-GCM 128
    • AES-192-CFB 192
    • AES-192-CFB1 192
    • AES-192-CFB8 192
    • AES-192-OFB 192
    • AES-192-CBC 192
    • AES-192-GCM 192
    • AES-256-GCM 256
    • AES-256-CFB 256
    • AES-256-CFB1 256
    • AES-256-CFB8 256
    • AES-256-OFB 256
    • AES-256-CBC 256
  • IPsec:
    • IKEv1
    • IKEv2
  • Encryption methods for IPsec:
    • 3DES
    • DES
    • AES128
    • AES192
    • AES256
    • AES128GCM8
    • AES192GCM8
    • AES256GCM8
    • AES128GCM12
    • AES192GCM12
    • AES256GCM12
    • AES128GCM16
    • AES192GCM16
    • AES256GCM16
  • GRE:
    • GRE tunnel
    • GRE tunnel over IPsec support
  • PPTP, L2TP:
    • Client/Server instances can run simultaneously
    • L2TPv3
    • L2TP over IPsec support
  • Stunnel:
    • Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
  • DMVPN:
    • Method of building scalable IPsec VPNs
  • SSTP:
    • SSTP client instance support
  • ZeroTier:
    • ZeroTier VPN client support
  • WireGuard:
    • WireGuard VPN client and server support
  • Tinc:
    • Tinc offers encryption, authentication and compression in its tunnels
    • Client and server support
• MODBUS TCP SLAVE:
  • ID range:
    • Respond to one ID in range [1;255] or any
  • Allow Remote Access:
    • Allow access through WAN
  • Custom registers:
    • MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionality
• MODBUS TCP MASTER:
  • Supported functions:
    • 01, 02, 03, 04, 05, 06, 15, 16
  • Supported data formats:
    • 8-bit: INT
    • UINT; 16-bit: INT
    • UINT (MSB or LSB first); 32-bit: float
    • INT
    • UINT (ABCD (big-endian)
    • DCBA (little-endian)
    • CDAB
    • BADC
• Data to server:
  • Protocol:
    • HTTP(S)
    • MQTT
    • Azure MQTT
    • Kinesis
  • Data to server:
    • Extract parameters from multiple sources and different protocols, and send them all to a single server.
• MQTT Gateway:
  • MQTT Gateway:
    • Allows sending commands and receiving data from MODBUS Master through MQTT broker
• DNP3:
  • Supported modes:
    • TCP Master
    • DNP3 Outstation
  • DLMS:
    • DLMS Support:
      • DLMS - standard protocol for utility meter data exchange
• Monitoring & management:
  • WEB UI:
    • HTTP/HTTPS
    • status
    • configuration
    • FW update
    • CLI
    • Troubleshoot
    • Event log
    • System log
    • Kernel log
  • FOTA:
    • Firmware update from server
    • Automatic notification
  • SSH:
    • SSH (v1, v2)
  • SMS:
    • SMS status
    • SMS configuration
    • Send/read SMS via HTTP POST/GET
  • Call:
    • Reboot
    • Status
    • Mobile data on/off
    • Output on/off
    • answer/hang-up with a timer
    • Wi-Fi on/off
  • TR-069:
    • OpenACS
    • EasyCwmp
    • ACSLite
    • tGem
    • LibreACS
    • GenieACS
    • FreeACS
    • LibCWMP
    • Friendly tech
    • AVSystem
  • MQTT:
    • MQTT Broker
    • MQTT publisher
  • SNMP:
    • SNMP (v1, v2, v3)
    • SNMP Trap
  • JSON-RPC:
    • Management API over HTTP/HTTPS
  • MODBUS:
    • Modbus TCP status/control
  • RMS:
    • Teltonika Remote Management System (RMS)
• IoT Platforms:
  • Cloud of Things:
    • Allows monitoring of:
      • Device data
      • Mobile data
      • Network info
      • Availability
  • ThingWorx:
    • Allows monitoring of:
      • WAN Type
      • WAN IP
      • Mobile Operator Name
      • Mobile Signal Strength
      • Mobile Network Type
  • Cumulocity:
    • Allows monitoring of:
      • Device model
      • Revision and serial number
      • WAN Type and IP
      • Mobile cell ID
      • ICCID
      • IMEI
      • Connection type
      • Operator
      • Signal strength
  • Azure IoT Hub:
    • Can send device IP
    • Number of bytes sent/received
    • Temperature
    • PIN count to Azure IoT Hub server
    • Mobile connection state
    • Network link state
    • IMEI
    • ICCID
    • Model
    • Manufacturer
    • Serial
    • Revision
    • IMSI
    • SIM State
    • PIN state
    • GSM signal
    • WCDMA RSCP
    • WCDMA EC/IO
    • LTE RSRP
    • LTE SINR
    • LTE RSRQ
    • CELL ID
    • Operator
    • Operator number
    • Connection type
• System characteristics:
  • CPU:
    • Single core ARM Cortex A7, 1.5GHz
  • RAM:
    • 256MB (128 MB available for userspace)
  • FLASH storage:
    • 512MB (200 MB available for userspace)
    • SPI Flash
• Firmware / Configuration:
  • WEB UI:
    • Update FW from file
    • Check FW on the server
    • Configuration profiles
    • Configuration backup
  • FOTA:
    • Update FW
  • RMS:
    • Update FW/configuration for multiple devices at once
  • Keep settings:
    • Update FW without losing the current configuration
• Firmware Customization:
  • Operating system:
    • RutOS (OpenWrt based Linux OS)
  • Supported languages:
    • Busybox shell
    • Lua
    • C
    • C++
  • Development tools:
    • SDK package with build environment provided
  • GPL customization:
    • You can now create your own custom firmware and web page application, with some examples to make the creation process easier; and brand our firmware by changing colours, logos, and so on to fit your or your clients’ needs.
• Input / Output:
  • Input:
    • 1x digital input
    • 0...6V detected as logic low
    • 8...30V detected as logic high
  • Output:
    • 1x digital output
    • Open collector output
    • Max output 30V, 300mA
  • Events:
    • Email
    • RMS
    • SMS
  • I/O juggler:
    • Allows setting certain I/O conditions to initiate events
• Power:
  • Connector:
    • 1x 4-pin Molex Micro-Fit 3.0 power connector:
      • Compatible with Molex Micro-Fit 3.0 0430250400 connector housing
  • Input voltage range:
    • 9...30VDC
    • Reverse polarity protection
    • Surge protection +/-1kV 50µs max
  • Power consumption:
    • Idle: < 3W
    • Max: < 6W
• Physical interfaces:
  • Ethernet:
    • 1x RJ45 ports 10/100/1000Mbps
  • I/O’s:
    • 2x configurable I/O pins on power connector
  • Status LEDs:
    • 3x connection type status LEDs
    • 3x connection strength LEDs
    • 2x LAN status LED
    • 1x Power LED
  • SIM:
    • 2  SIM slots (Mini SIM – 2FF)
    • 1.8V/3V
  • Power:
    • 1x 4-pin power connector
  • Antennas:
    • 4x SMA for mobile
  • USB:
    • 1x Virtual network interface via micro USB
  • Reset
    • Reboot/User default reset/Factory reset button
• Physical specification:
  • Casing material:
    • Aluminum housing
  • Mounting options:
    • 35mm DIN rail (can be mounted on two sides)
    • Flat surface
• Operating environment:
  • Operating temperature:
    • -40...75°C
  • Operating humidity:
    • 10% to 90% non-condensing
  • Ingress protection rating:
    • IP30

Download Teltonika TRB500 5G gateway technical datasheet
