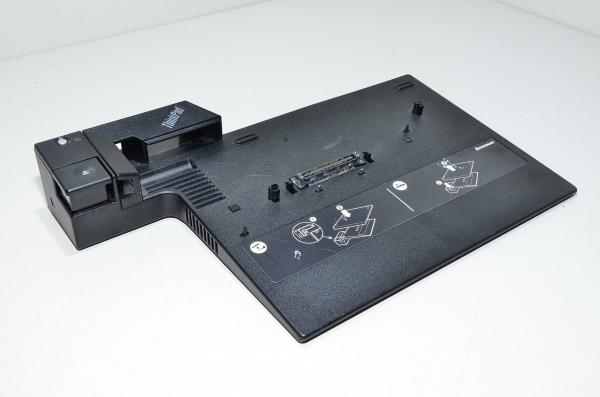

Lenovo / IBM ThinkPad Essential port replicator type 2505 Dockinging Station / Port Replicator for ThinkPad T/R/W/Z series (42W4627,42W4626)

The ThinkPad ThinkPad Essential port replicator offers enhanced cable management and connectivity in a surprisingly small form factor. It is ideal for notebook users who need quick and easy access to peripherals but do not require full desktop expansion capability. And hey think about saving all of the connectors on your laptop. If something goes wrong in connectors of laptop motherboard then it is pretty hard job to replace the connector. Fixing the broken connector in laptop results in most cases in exchanging the motherboard. How much would new motherboard cost you? Well think again do you need a docking station back at home or work.

Features of the ThinkPad Essential port replicator include:

• Left corner alignment for easy system attachment
• 4x USB 2.0 ports
• PS/2 port for mouse or keyboard
• Video Ports:
  • VGA Analog
• Allows for two monitors (one digital and one analog) to attach.
• The ThinkPad system determines the displayed monitor resolution:
  • 1920 x 1200 or 2560 x 1600
• A DVI-to-VGA Monitor Adapter is not supported on DVI-D Digital video port.
• VGA analog supports 1920 x 1200 resolution
• Communication ports:
  • Gigabit Ethernet (RJ-45) and modem (RJ-11)
• Integrated Kensington cable lock slot physically secures the ThinkPad system and ThinkPad Advanced Mini Dock.
  • The Kensington cable lock secures the ThinkPad Essential port replicator to the workspace (desk, table, pole, furniture, wall)
  • Insertion of Kensington lock, on the side of the ThinkPad Essential port replicator, secures the ThinkPad to the ThinkPad Essential port replicator
• 90W AC Power Adapter - Recharges the ThinkPad system battery while fueling all functions of the ThinkPad Advanced Mini-Dock.
  • Can be used with 65W power supplies too. Check your particular laptop model details about power supply requirements. In general more powerful models such as ThinkPads with ATI graphics require the larger 90W power supply to operate at full throttle.

Hardware compatibility:

• ThinkPad R60 (14" standard and 15" standard)
• ThinkPad R61, R61i (14" wide)
  • All
• ThinkPad R61, R61i (15.4" wide and 15" standard)
• ThinkPad R400 (14.1" wide)
  • All
• ThinkPad R500 (15.4" wide)
  • All
• ThinkPad T60, T60p (14" standard and 15" standard)
  • All
• ThinkPad T60 (15.4" wide)
  • All
• ThinkPad T61 (14" wide)
  • All
• ThinkPad T61 (14" standard)
  • All
• ThinkPad T61 (15.4" wide)
  • All
• ThinkPad T400 (14.1" wide)
  • All
• ThinkPad T500 (15.4" wide)
  • All
• ThinkPad W500 (15.4" wide)
  • All
• ThinkPad Z60m (15.4" wide)
  • All
• ThinkPad Z60t
  • All
• ThinkPad Z61m (15.4-inch wide)
  • All
• ThinkPad Z61t (14-inch wide)
  • All
• ThinkPad Adjustable Notebook Stand
• Lenovo Easy Reach Monitor Stand
