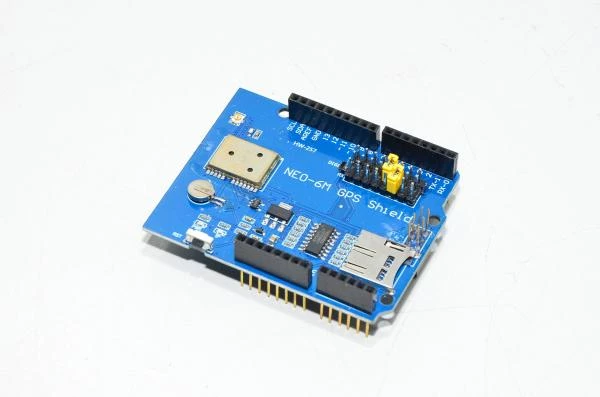

U-BLOX NEO-6M (imitation) Arduino compatible GPS shield with microSD slot card and U.FL antenna connector *new*

NEO-6M GPS module with an microSD card slot is a compact GPS receiver suitable for a wide range of positioning and navigation applications. The module utilizes the advanced u-blox NEO-6M GPS engine, which receives signals from multiple GPS satellites to achieve accurate positioning. It features an internal EEPROM memory that speeds up satellite acquisition by storing previously received satellite data. Additionally, the SD card slot allows GPS data such as location (latitude and longitude), altitude, speed, and time to be saved directly onto a microSD card without the need for an external storage device.

Note! The microchip is not a genuine U-Blox NEO-6M, but a fake made by some Chinese fucktards (we thought we were buying products equipped with a U-blox chip). We don't know how that chip differs from the genuine one. In our use it has done what we need it to do, but it is not original. The product pictures show an example of what is found under this cover and what was found under the genuine U-Blox NEO-6M cover.

Module technical details (GPS specs are from U-blox NEO-6M and this unit might differ from those):

• Model:
  • Unit pretends to be NEO-6M
• Type:
  • Arduino compatible GPS shield equipped with external antenna and micro-SD card slot
• Operating voltage:
  • 5V from Arduino
• Interfaces:
  • UART
  • USB V2.0 full speed 12Mbit/s
  • SPI
  • DDC (I²C compliant)
• I/O configuration:
  • Selectable with jumpers which data pins (D0-D7) act as UART connection RX and TX pins
• Antenna connector:
  • U.FL with 3,3VDC supply for active antenna
• Receiver type:
  • 50 Channels:
    • GPS L1 frequency
    • C/A Code
    • SBAS:
      • WAAS
      • EGNOS
      • MSAS
  • Protocols:
    • NMEA
    • UBX binary
    • RTCM
• Horizontal position accuracy:
  • GPS:
    • 2,5m
  • SBAS:
    • 2,0m
• Acquisition:
  • Cold start:
    • 27s
  • Aided starts:
    • <3s
  • Hot start:
    • 1s
