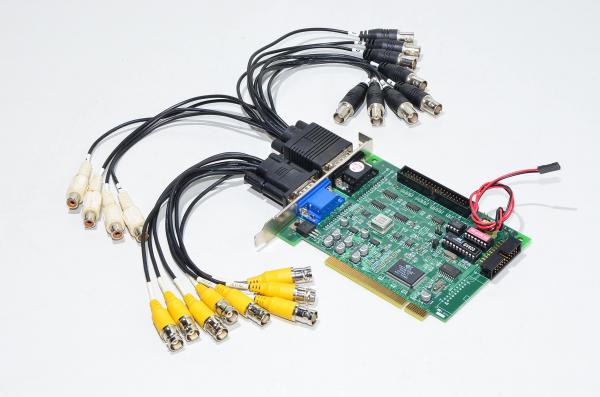

Geovision GV600V3 PCI video surveillance card for 16x cameras and 4x audio inputs

DVR camera card made by Geovision. This card was used to record video from 16x different cameras and 4 audio sources. During it's time it was somewhat advanced card, since it could process the video signals by itself without bothering the CPU. This DVR card and the software featured some simple machine vision things. For example user could mask certain areas in the video image for special effects, such as motion sense and counter. So technically user can set up this card in a way, that it will start recording only when it sees motion and it can count your incoming and leaving customers. Software can also send email alerts.

DVR card technical specs:

• Interface:
  • PCI
• Number of cameras:
  • 16x composite video cameras
• Number of audio inputs:
  • 4x
• Additional IO's:
  • Hardware watchdog for rebooting PC if it crashes
  • Judging by the multi pin connectors on the PCB, the card might feature something else as well
• Compatible PC's:
  • Something from the age of Pentium 4, with Windows XP
  • Might work on later editions as well, but we have only used it at such. Manufacturer might also have more recent software/drivers available. We only have this driver/software .zip file bellow with the version 6050:

Download Geovision GV650 driver V6050_en.zip (114MB)

Download Geovision GV600 installation manual
