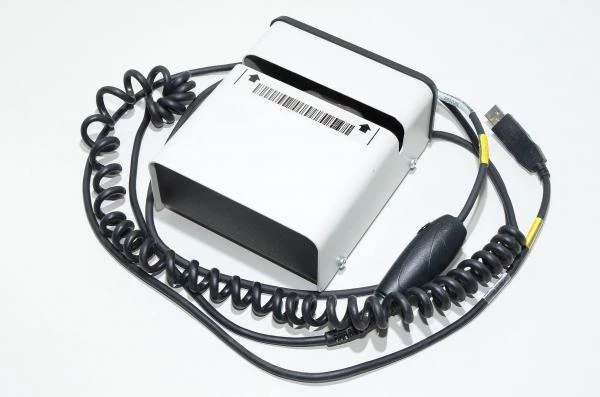

Hand held products Imageteam IT 3900-12E bar code scanner in metal case

Fixed Position Bar Code Scanner in metal casing. Upon desire the reader can be removed from metal chassis (7x screws) and after that you got very compact, high grade, hand held bar code reader which is equipped with long USB cable.

The Hand Held Products IMAGETEAM (IT) 3900-12E is a fixed position linear imager that adds bar code scanning to kiosks and other OEM applications. The Hand Held Products IT3900-12E uses linear imaging technology to deliver a bright, sharp aiming line, and fast reading and decoding that makes scanning intuitive and simple.

The Hand Held Products IT3900-12E has an automatic trigger mode for constant scanning or can be used in a presentation mode, where the scanner is turned on when a bar code is placed in its viewing area. Scanning can also be controlled by the host computer via serial commands.

Real world reading performance
Reads faded labels, short quiet zones, dot matrix printing, and printer-induced bar space variations

• Ideal applications include:
  • Typically adds bar code scanning to kiosks and other OEM applications.
• Triggering:
  • Continuous auto trigger mode or via serial command
• Resolution:
  • 5mil at 8.8cm (3.5") distance
• Reading Width:
  • 12.7cm (5") code width at 17.8cm (7") distance
• Reading Distance:
  • 2.5..22.8cm (1...9") on medium density codes
• Receiving Device:
  • 3648 element linear imager
• Illumination:
  • 630nm visible red LED
• Skew Angle:
  • +30°
• Pitch Angle:
  • +15°
• Scan Rate:
  • Programmable to 270 scans per second
• Decode Rate:
  • 270 decodes per second
• Mechanical Shock:
  • Operational after 5 drops from 1.53m (5ft.) to concrete
• Vibration:
  • Withstands 5G peak 20...300Hz
• Operating Temperature:
  • 0...50°C (32...122°F)
• Ambient Illumination:
  • 0...70000lux
• ESD Protection:
  • Functional after 15kV discharge
• Symbologies:
  • Codabar
  • Code 3 of 9 including PARAF
  • Interleaved 2 of 5
  • Code 2 of 5
  • Matrix 2 of 5
  • Code 11
  • Code 93
  • Code 128
  • UPC
  • EAN/JAN
  • China Postal Code
  • RSS
• Interface:
  • USB
  • Seen by computer as (tested on Linux Mint 14 with kernel: 3.5.0-34-generic):
  • ID 04b4:0100 (ID = vendor:model)
  • Cypress Semiconductor Corp. Cino FuzzyScan F760-B
• Mounting:
  • 3x M4 threaded inserts in frame.

Download Hand Held Linear imager 3800/3900 bar code scanner user manual
