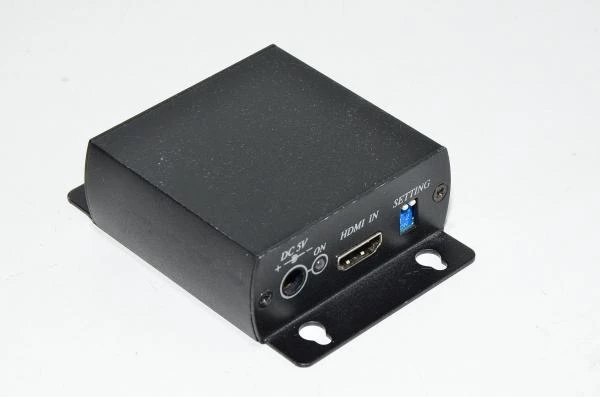

SC&T HE01ST transmitter HDMI to LAN extender (local unit), 70m/45m/40m

Small handy HDMI extender. Plug the local unit into the computer and wire LAN cabling to the remote unit and have your extended display in operation somewhere else. In general extender's LAN cables DO NOT carry TCP/IP type network communication. Ie do not try to connect these into the local area network switches. These use purely the cable to their advantage and what and how it's transferred along the cable might vary between manufacturers.

Extender's technical specs:

• Extender type:
  • HDMI to LAN extender, local unit
• Compatible opposite pair:
  • SC&T HE01SR receiver, remote unit
• Operating voltage:
  • 5VDC
    • Does not require external power supply if transmission distance is under 30m
• Max operating current:
  • 0,6A
• Connectors:
  • HDMI A female (HDMI output)
  • 5,5x2,5mm male DC connector
  • 1x female RJ45 LAN connector
• LAN cable requirements:
  • CAT 5 UTP (unshielded) or better
    • STP (shielded) cable will result in no picture
• HDTV resolutions:
  • 720p@60Hz
  • 1080i@60Hz
  • 1080p@60Hz (1920x1080)
• Max extension distance:
  • 40m 1080p CAT 5e
  • 45m 1080p CAT6
  • 70m 1080i/720p CAT 5e
• Other things worth mentioning:
  • HDMI1.3 HDCP, 3D compatible
• LED indicator:
  • Blue:
    • Power on
  • Flashing blue:
    • TV EDID backup completed
  • Green:
    • Sends power to the receiver (remote unit)
  • Yellow:
    • No data input or unsupported format
• DIP switch function:
  • DIP 1:
    • Off:
      • Use the default EDID
    • On:
      • Use the backup EDID
  • DIP 2:
    • Off:
      • Select the first default EDID. Support 1080i/LPCM 2 channel.
    • On:
      • Select the first default EDID. Support 1080p/LPCM 5.1 channel.
• Use external EDID:
  • 1. Set DIP switch 1 into ON position and power off the HE01ST.
  • 2. Connect the HE01ST to HDMI connector of TV for backing up it's EDID.
  • 3. Power up the HE01ST and TV. EDID back up will complete automatically (Blue LED flashing)
  • 4. After completing the TV EDID backup HE01ST must be powered down in order to activate the new EDID.
