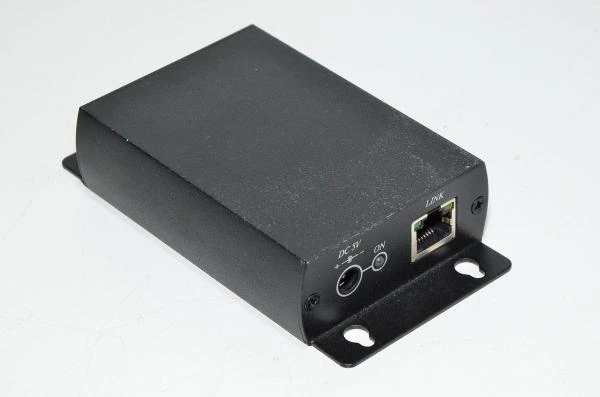

SC&T HE01SR receiver HDMI to LAN extender (remote unit), 70m/45m/40m

Small handy HDMI extender. Plug the local unit into the computer and wire LAN cabling to the remote unit and have your extended display in operation somewhere else. In general extender's LAN cables DO NOT carry TCP/IP type network communication. Ie do not try to connect these into the local area network switches. These use purely the cable to their advantage and what and how it's transferred along the cable might vary between manufacturers.

Extender's technical specs:

• Extender type:
  • HDMI to LAN extender, remote unit
• Compatible opposite pair:
  • SC&T HE01ST transmitter, local unit
• Operating voltage:
  • 5VDC
    • Does not require external power supply if transmission distance is under 30m
• Max operating current:
  • 0,4A
• Connectors:
  • HDMI A female (HDMI output)
  • 5,5x2,5mm male DC connector
  • 1x female RJ45 LAN connector
• LAN cable requirements:
  • CAT 5 UTP (unshielded) or better
    • STP (shielded) cable will result in no picture
• HDTV resolutions:
  • 720p@60Hz
  • 1080i@60Hz
  • 1080p@60Hz (1920x1080)
• Max extension distance:
  • 40m 1080p CAT 5e
  • 45m 1080p CAT6
  • 70m 1080i/720p CAT 5e
• Other things worth mentioning:
  • HDMI1.3 HDCP, 3D compatible
• LED indicator:
  • Blue:
    • Runs on external power
  • Green:
    • Runs on power provided from HDMI
  • Yellow:
    • No data input or signal too weak
