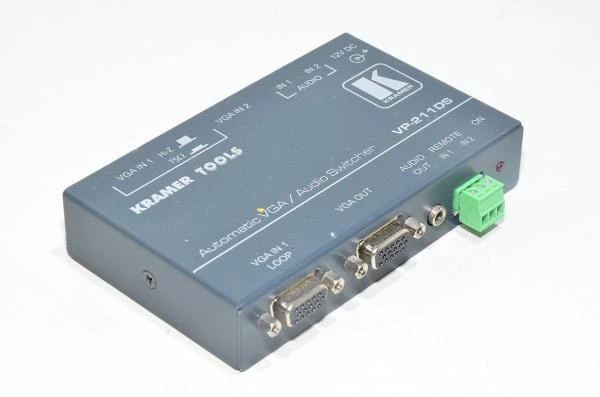

Kramer Tools VP-211DS 2x VGA in 1x VGA out automatic video / audio switcher / splitter with 300MHz bandwith

Want to split analog VGA signal into two different displays? Sure, get this splitter and all you need is some cable connection work and you shall receive two images out of one. In this model you can even connect two computers and then remotely select with a switch what do you want to look at or let the device manage the selection according to what input has been set as default. But wait there is more! It can also switch the audio source as well.

VGA video splitter technical details:

• Number of inputs:
  • 2x (selectable with remote switch + default input can be set at the bottom) + audio
• Number of outputs:
  • 1x + audio (+ extra display)
• Bandwidth:
  • 300MHz video
  • 100MHz audio
• Indicator lights:
  • Power on red LED
• Connectors:
  • 4x 15pin female sub DE-15 VGA (HD-15)
  • 5,5x1.7mm DC socket (thread lockable)
• Operating voltage:
  • 12VDC / 105mA

Download Kramer tools VP-211DS automatic VGA / audio switcher user manual
