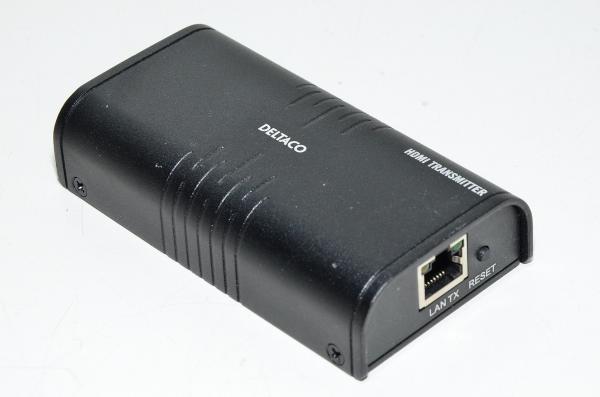

Deltaco HDMI-221 tranceiver rev5 HDMI to LAN extender (local unit), 120m/100m/80m

Small handy HDMI extender. Plug the local unit into the computer and wire LAN cabling to the remote unit and have your extended display in operation somewhere else. In general extender's LAN cables DO NOT carry TCP/IP type network communication. Ie do not try to connect these into the local area network switches. These use purely the cable to their advantage and what and how it's transferred along the cable might vary between manufacturers.

Extender's technical specs:

• Extender type:
  • HDMI to LAN extender, local unit
• Compatible opposite pair:
  • Deltaco HDMI-221 receiver, remote unit
• Operating voltage:
  • 5VDC
• Max operating current:
  • 0,6A
• Connectors:
  • HDMI A female (HDMI input)
  • 5,5x2,1mm male DC connector
  • 1x female RJ45 LAN connector
• LAN cable requirements:
  • CAT 5 or better
• HDTV resolutions:
  • 480i@60Hz
  • 480p@60Hz
  • 576i@50Hz
  • 576p@50Hz
  • 720p@50/60Hz
  • 1080i@50/60Hz
  • 1080p@50/60Hz (1920x1080)
• Max extension distance:
  • 80m 1080p CAT 5
  • 100m 1080p CAT 5e
  • 120m 1080p CAT 6
• Other things worth mentioning:
  • According to IEEE-568B standard
  • Supports 100mbps Ethernet data connection
  • HDCP compatible
  • CEC support (Consumer Electronic Control)
