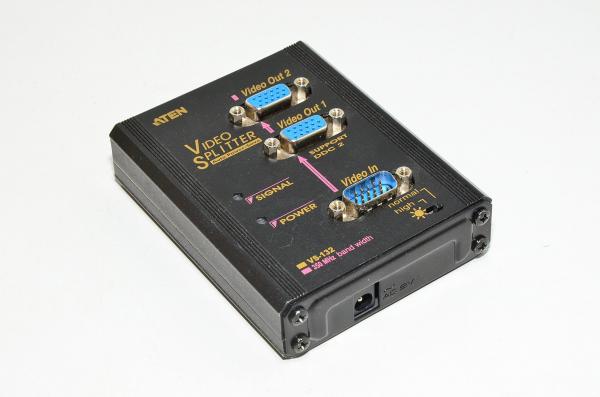

Aten VanCryst VS-132 1x VGA in 2x VGA out video splitter with 350MHz bandwith, 1920x1440px, 65m

Want to split analog VGA signal into two different displays? Sure, get this splitter and all you need is some cable connection work and you shall receive two images out of one.

VGA video splitter technical details:

• Number of inputs:
  • 1x
• Number of outputs:
  • 2x
  • Cascadable up to three levels, which provides up to 8 video signals
• Bandwidth:
  • 350MHz
• Max supported resolution:
  • 1920x1440px
• Video output Max distance:
  • 65m
• Video input max distance:
  • 1,8M
• Indicator lights:
  • Power on LED
  • Signal present LED
• Connectors:
  • 1x 15pin male sub DE-15 VGA (HD-15)
  • 2x 15pin female sub DE-15 VGA (HD-15)
  • 5,5x2.1mm DC socket
• Operating voltage:
  • 5,3VDC 80mA

Download Aten VanCryst VS-132 VGA video splitter technical datasheet
