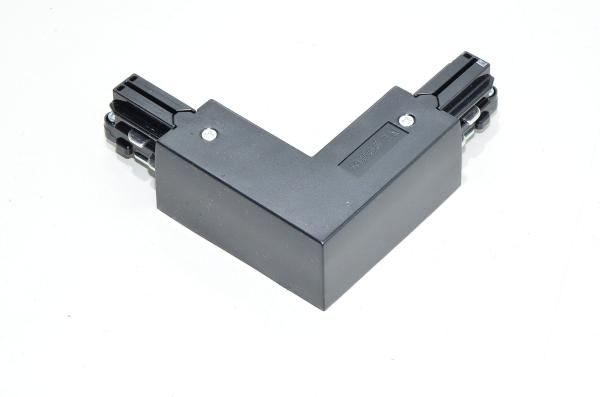

Nordic light NL power 047-204 light rail system angle connector / reversible, black, Eurostandard Plus *New*

3-phase track lighting used for mounting luminaires, providing power, and control in a single structure it enables flexible and customizable lighting design especially in public and commercial spaces such as restaurants, retail stores and exhibition areas the track features separate power feeds for three different circuits allowing independent control and management of multiple lighting groups within the same track system.

Track lighting system features:

• 3-phase track usage example:
  • phase 1:
    • Suitable for dimmable lights such as spotlights.
  • phase 2
    • Can be used for ON/OFF control of general lighting.
  • phase 3
    • Ideal for controlling cleaning lights (ON/OFF).
• Three separate power supplies enable flexible lighting control for multiple zones using a single track system.
• Input/output cables can be connected to both ends of the track with each end having its own connector type.
• The two ends of the track have different end types which make installation easier and ensure correct power direction to prevent incorrect connections when extending the track.
• Connector pieces allow tracks to be extended and the system to be adapted to meet specific site requirements.
• Track lighting is well suited for restaurants, retail stores, showrooms and trade fairs where flexible and versatile lighting control is needed as well as easy repositioning of luminaires without always needing to call an electrician.

Light track power supply connector's technical details:

• Model
  • 047-204
• Intended use:
  • Angle connector / reversible
• Max. current:
  • 16A / phase
• Max. operating voltage:
  • 400VAC
• Protection class:
  • IP20
• Compatibility:
  • Note: This list includes 3-phase track lighting systems and fixtures that use the "Eurostandard Plus" profile or a compatible equivalent. The compatibility of fixtures/lamps depends on their adapter. Always ensure that any accessory or fixture you purchase is compatible with your specific track system.
    • Mutually compatible 3-phase track lighting systems:
      • Nordic Aluminium – GLOBAL Trac Pro
      • Nordic Aluminium – GLOBAL Trac Pulse
      • Nordic Aluminium – GLOBAL Trac Base (3-phase)
      • Nordic Light – NLP 3 (3-circuit)
      • Eutrac – 3-Phase Track
      • Hoffmeister – 3-Phase Track
      • Erco – 3-circuit Track
      • Staff – 3-Phase Track
      • Ivela – Eurostandard Plus (3-circuit)
      • Stucchi – ONETRACK (3-circuit version)
      • Unipro – 3-Phase Track (Lival Group)
      • IGuzzini – 3-circuit track
      • Zumtobel – TECTON 3-circuit (not the TECTON LED system!)
      • Concord / Sylvania – 3-circuit Track
      • Paulmann – URail 3-phase Pro
      • Robus – 3-circuit Track
      • DGA – 3-Phase Track
      • Lival – 3-circuit track (same group as Unipro)
      • SG Armaturen – 3-Phase Track

Download NLP 3-circuit track system product catalog
