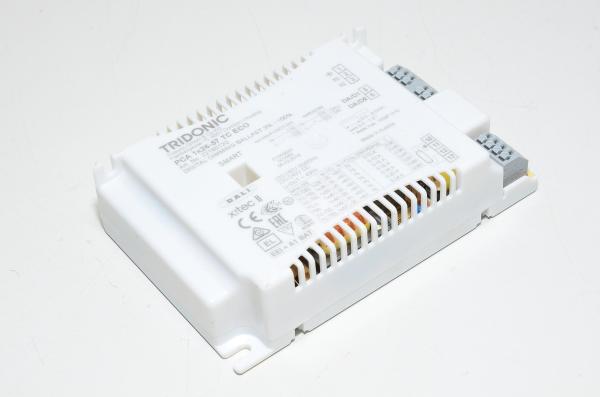

Tridonic PCA 1x26-57 TC ECO x!tec II 22185120 digital dimmable ballast for fluorescent lamps

Ballast is used to limit the operating current for fluorescent lamps. With this model you can also dim the lamps.

Electronic ballast's key features:

• Intelligent Temperature Guard (overtemperature protection)
• Intelligent Voltage Guard (overvoltage indication and undervoltage shutdown)
• Optimum filament heating in any dimmer setting
• Automatically triggered emergency lighting value in DC mode, 15 %
• For emergency lighting systems as per EN 50172
• Automatic start after replacement of defective lamp

Ballast technical details:

• Operation principle:
  • Electronic
• Suitable lamps:
  • 1 x 24 W TC-L
  • 1 x 26 W TC-DEL
  • 1 x 26 W TC-TEL
  • 1 x 32 W TC-TEL
  • 1 x 40 W T5c
  • 1 x 40 W TC-L
  • 1 x 42 W TC-TEL
  • 1 x 57 W TC-TEL
• Operating voltage:
  • 220-240VAC/VDC
• Max current:
  • 0.24A
• Dimming capability:
  • 3...100%
• Dimming operation:
  • Switching L input to D2 terminal with traditional push button
    • Short press = On/Off
    • Long press = adjust dimming
  • Corridor function (3 preprogrammed profiles)
  • Digital signal DSI
  • DALI signal
• Operating frequency:
  • 40...130kHz
• Smart interface:
  • By using additional smart module the unit tries to upkeep the preset illumination level automatically.
  • Use with DSI signal is not possible if smart interface is in use.
