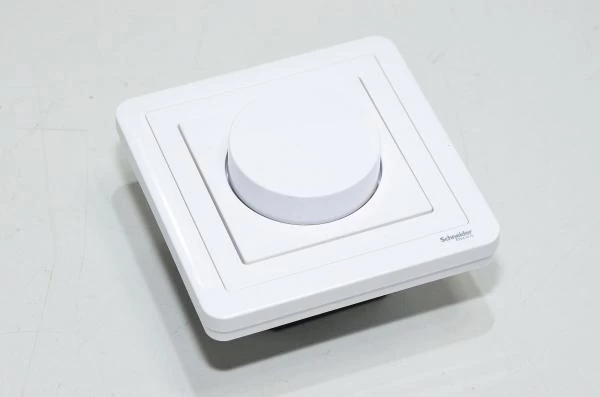

Schneider Electric SBD 1-10V Merten MTN5142-0000 dimmer + Schneider Exxact installation bezel

Dimmer switch is designed to control the brightness of lighting fixtures. This dimmer switch is commonly used in residential and commercial settings to provide flexible lighting control, enhance comfort, and save energy by reducing the power consumption of lights when full brightness is not needed.

Dimmer technical details:

• Dimmer control:
  • Rotary knob with push type on/off switch
• Dimmer output:
  • 1...10V controller (with min and max adjustments)
    • Signal load
      • 1V 0,2-200mA
      • 10V 20mA
• Operating voltage:
  • 230VAC
• Max load current (what ever you desire to toggle through the on/off switch)
  • 1,7A
• Max load power (what ever you desire to toggle through the on/off switch)
  • 400VA
• Operating temperature:
  • -5…+45°C
• IP degree of protection:
  • IP20
• Standards:
  • EN 60669-1
  • EN 60669-2-1
• Mounting bezel nominal dimensions:
  • 71x71mm
• Mounting screw spacing:
  • 60mm
• Compatible insert series:
  • Scheinder Exxact
    • Single unit Exxact mounting bezel is included
