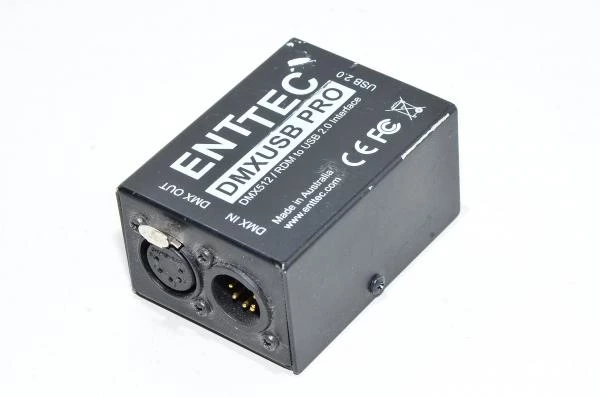

Enttec USB DMX Pro interface

Products don’t become an industry standard for no reason. The DMX USB Pro has proven for a number of years that it’s both a reliable and robust product usable for a number of applications. It has been adopted by multiple professionals across the world. The DMX USB Pro allows for simple USB 2.0 support through a robust USB-B connection, sending or receiving a physical DMX512 signal using PCs, Macs and Linux devices running a broad array of third-party software.

With industry standard-5 pin input and output connections as well as 1500V full isolation for both data and power lines, you can rest assured that your computer will be protected from any stray voltages and faults that may occur on the DMX line. Furthermore, this DMX USB interface features an internal frame buffer for consistent DMX generation when outputting. This means it isn’t dependant on your PC’s processor to regulate a steady, reliable flow of data and to provide a stable data stream regardless of your PC’s workload.
You can also view the activity of the DMX USB Pro quickly using it’s LED status indicator. Use ENTTEC’s free PRO-Manager software to test, update and configure your USB Pro alongside other products in the ENTTEC range. Pro Manager is easy to use and runs on both Windows and Mac (up to OSX 10.11). You can even change the firmware to support your exacting requirement (RDM or Non-RDM). The DMX USB Pro is compatible with an enormous range of commercial and free software.

Enttec DMX controller technical details:

• Controller hardware compatibility:
  • PC
  • Mac
  • Linux
  • Embedded electronics
• A couple of compatible programs to choose from:
  • ArKaos (Windows, Mac OSX)
  • Capture (Windows, Mac OSX)
  • Capture Atlas (Windows)
  • CAST software WYSIWYG lighting design (Windows)
  • Chameleon (Mac OSX)
  • Chamsys MagiQ (Windows, Linux, Mac OSX)
  • Chromakinetics (Windows)
  • Cue Player Lighting (Windows)
  • D-PRO (Windows, Mac OSX)
  • D::Light (Windows, Linux, Mac OSX)
  • DAZL (Windows)
  • DigiSelect (Windows)
  • DMX 512 external for Max (Windows, Linux, Mac OSX)
  • DMXControl (Windows)
  • FootLight (Mac OSX)
  • Freestyler (Windows)
  • Hsyco (Home Automation) (Linux)
  • Jinx! LED Matrix Control (Windows)
  • JS DMX Project (Windows)
  • LightFactory (Windows)
  • Lightforge (Windows)
  • LightJams (Windows)
  • Lightkey (Mac OSX)
  • Lightning DmxControl (Mac OSX)
  • liveShowsoftware (Windows, MacOS)
  • LXConsole (Mac OSX)
  • LXScriptPlayer (Mac OSX)
  • MaizeDMX (Windows, MacOS)
  • Martin (M-PC)
  • MediaMaster Express (Windows, Linux, Mac OSX)
  • Millumin (Mac OSX)
  • Modul8 (Mac OSX)
  • Modul8 (Mac OSX)
  • MX Wendler (Windows, Linux, Mac OSX)
  • Plexus
  • QLab 4 (Mac OSX)
  • QLC + (Windows, Linux, Mac OSX)
  • QuickShow – Pangolin (Windows)
  • Resolume Arena (Windows, Linux, Mac OSX)
  • Show Cue Systems (Windows)
  • ShowCAD Artist (Windows)
  • ShowMagic (Windows)
  • TJShow (Windows)
  • VirtualLightDesk (Mac OSX)
  • Vixenlights (Windows)
  • vvvv – multi purpose toolkit (Windows)
  • White Cat Lighting Board (Windows)
  • WidgetRec – A DMX Receiver/viewer (Windows)
• Operating method:
  • Can be used as DMX input or DMX output interface
• DMX spesifications:
  • Max 512 DMX channels (1x DMX line/universe)
  • Configurable DMX refresh rate (1...40Hz)
  • Configurable break time (96µs...1.3 ms)
  • Configurable MaB (Mark After Break) time (10.6µs...1.3 ms)
  • RDM (Remote Device Management) supported (requires changing of firmware version)
• Protocols:
  • DMX 512 (1990)
  • DMX 512-A
  • RDM
• Software for firmware upgrade:
  • Enttec PRO-Manager
• Electronic features:
  • Fast CPU for fast data processing and uninterrupted data flow (If your computer CPU gets briefly loaded up, the DMX datastream will not be interrupted right away the same way as it would with DMX controllers, which do not have any built in CPU/buffering in them)
  • EEPROM memory
• Connectors:
  • DMX (Insulates up to 1500V and thus protects the connected computer from damage):
    • 1x 5pin XLR male
    • 1x 5pin XLR female
  • USB port (Insulates up to 1500V and thus protects the connected computer from damage):
    • USB Type B
• IP-rating:
  • IP20
• Housing material:
  • Steel
