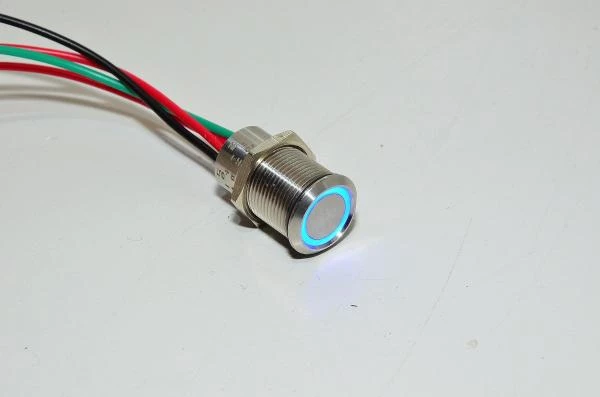

Aibeiken IB16A FLX15 16mm stainless steel multistaged touch PWM dimmer with memory, concave, 12-24VDC, 2A *new*

Small convenient touch dimmer module for various LED installations. Just run your LED operating current in series through the dimming unit and you are ready to use the whole thing. Dimmer can be used ranging from single LEDs up to LED strips or any other larger contraptions, as long as the device max current draw is not exceeded.

Dimmer unit technical details:

• Operating principle:
  • Touch operated PWM dimmer for operating LED's
  • Tap button:
    • Dims in steps and in order 100%, 42%, 11%, off (PWM duty cycle)
• Operating voltage:
  • 12...24VDC
• Max operating current:
  • 2A
• PWM switching frequency:
  • 31,8kHz
• Indicator light:
  • Blue LED ring, which is constantly lit
• Button shape:
  • Concave
• IP rating:
  • Not stated, but it could be IP67
• Dimmer chassis material:
  • 304 stainless steel
• Pinout:
  • 2x red wires
    • + from the power supply and to the LED's
  •  Green wire:
    • Power supply -
  • Black wire:
    • LED -
• Installation method:
  • Mount into 16mm hole and lock it with jam nut
    • max panel thickness:
      • 15mm
  • Screw the dimmer into M16x1 threaded hole
• Dimming range:
  • In steps and in order 100%, 42%, 11%, off (PWM duty cycle)
