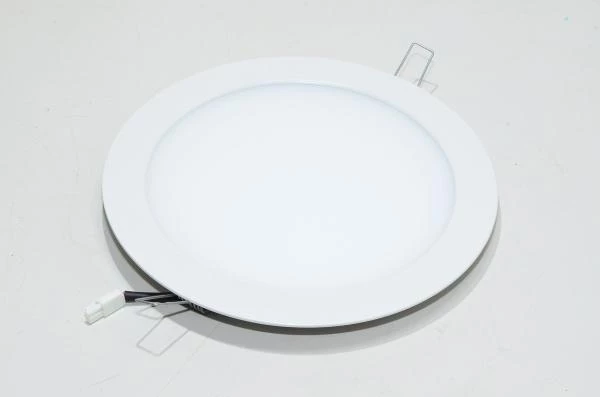

Secom Illumination Aircom LED Circular 4220010584 downlight 15W 4000K 1740lm IP44 245mm

Recessed round downlight. A low-profile recessed LED downlight made in Spain, equipped with Osram Duris E3 LEDs. Very even and pleasant light distribution thanks to the built-in diffuser. Suitable for general lighting, for example, in residential construction, including wet areas.

Technical details of the recessed luminaire:

• Max power:
  • 15W
• Max light output:
  • 1740lm
• Operating voltage:
  • About 42VDC
• Max operating current:
  • 350mA
• Dimmable:
  • Yes, if your power supply allows dimming
• Color temperature:
  • 4000K neutral white
• Diffuser:
  • High-quality PMMA (plexiglas, acrylic) diffuser that evens out the light uniformly along the light surface.
• CRI value (color rendering index):
  • 0.8
• IP rating:
  • IP44 (from below)
• Outer diameter of the luminaire:
  • 290mm
• Light surface diameter:
  • 145mm
• Installation hole of the luminaire:
  • Tight, where you need to groove the grooves for the springs:
    • 220.5mm
  • Tight fit (springs just fit):
    • 226mm
  • One where the light easily sinks:
    • 230mm
• Thickness of the luminaire from the front plate to the outer edge of the spring:
  • 22mm
• Thickness of the front plate flange:
  • 2.5mm
• Length of the wire:
  • 220mm
• Wire connector:
  • 2-pin JST ELP-02V male connector
    • Suitable counterpart:
      • JST ELR-02V or JST ELR-02VF female connectors
• Frame material:
  • Powder coated cast aluminium
