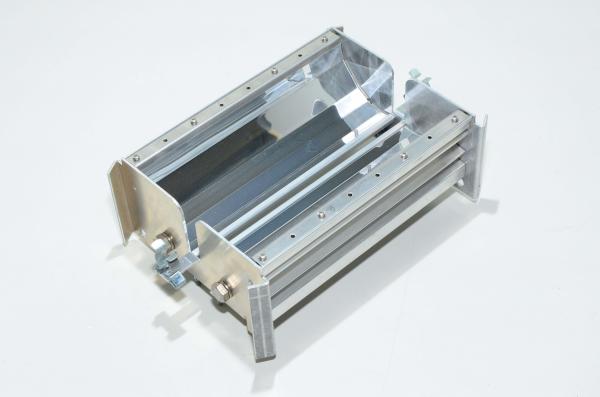

Full metal lamp with reflector for 270mm quartz glass mercury vapor ultraviolet tube *new*

Lamp assembly made entirely out of metal for industrial needs. Lamp can be equipped with bulb that has ceramic bases. Bulb is attached into spring loaded clips by pushing it in from ceramic bases. Lamp is sturdy make and most likely there has been used aluminum and stainless steel when building it. The only parts that can corrode are the lamp holders and the 4x fastening screw which stick out from the bottom. This gizmo can be used for example with UV lamp to cure plastics, lacquers,paints,glues or for PCB exposure.

• Box dimensions
  • LxDxH:
    • 250x157x88
• Fastening:
  • 4x M4x18mm screws at the bottom
  • 4x 8.4mm holes on on end plates
  • Some other method for example sliding it into suitable counterpart or something sort of a.
• Feasibility:
  • For gas discharge lamps of total length of 270mm
• Lamp holders spacing from each other:
  • 231mm
• Lamp holders width:
  • 8mm
