Omron P7TF-OS16 24VDC relay terminal socket DIN rail mount *new*

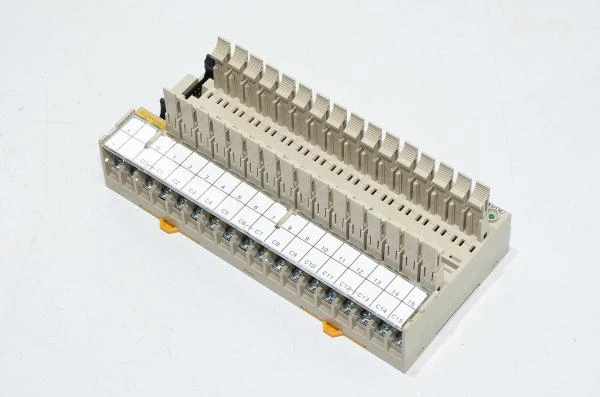

P7TF-OS16 is a relay terminal socket designed to facilitate the connection and mounting of Omron's G7T series relays. This terminal socket provides a convenient and reliable means to interface relays with control circuits, making it an essential component in various automation and control applications.

Relay socket technical details:

• Mounting option:
  • DIN rail 35mm
  • Screw mounting through 4mm hole
• Contact resistance:
  • Max. 10mΩ
• Permissible current:
  • 10A
• Dielectric strength:
  • 2000VAC, 50/60Hz for 1 minute.
• Insulation resistance:
  • Min. 1000MΩ (at 500VDC)
• Vibration resistance:
  • 10...55Hz with 1,0-mm double amplitude.
• Shock resistance:
  • 200m/s²
• Noise immunity:
  • Noise level:
    • 1,6kV Pulse width 100ns...1μs
• Operating temperature:
  • 0...+55°C
• Ambient operating humidity:
  • 35...85%
• Tightening torque for external connections:
  • 0,78...1,17Nm
• LED color:
  • Green
• Coil surge absorption element:
  • Diodes (1A, 400VDC)
• Protection diode for inverse connection:
  • Diodes (2A, Reverse withstand voltage 400VDC)
• Number of Contacts:
  • 16 relay contacts
• Connection:
  • Screw terminal
• Compatible relay modules:
  • Omron G7T-series relay modules.

Download Omron G7TC-series relay terminal socket DIN rail mount technical datasheet

Download Omron P7TF-IS16/OS16/OS8 I/O terminal sockets technical datasheet
