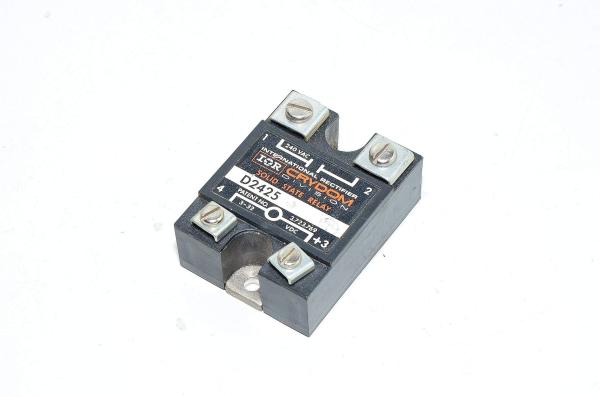

International Rectifier Crydom D2425 solid state relay, input 5-24VDC, load 24-280VAC 25A, NO

Solid-state relays (opto-couplers) are used as an interface between different signal levels or to isolate one signal from another. Opto-coupler is similar in function to a relay. The modules are often used to enable the low voltage outputs of PLC's to control higher voltage and current loads. For example, a load voltage can be even 250 V and it will be still completely galvanically isolated from the PLC.

Opto-couplers have the following qualities:

• Long life
• No mechanical wear and tear (solid state operation)
• Silent operation
• No contact bounce

Some examples of optocoupler applications:

• Control of DC loads
• Application with electrical isolation
• To convert an NPN output into a PNP output
• To convert an PNP output into a NPN output

Crydom D2425 solid state relay technical information:

• Nominal operating voltage:
  • 3...32VDC
• Max Operating current:
  • 150mA with 32VDC voltage
• Output form:
  • NO (Normally open)
• Operation indicator:
  • There is none
• Nominal load voltage:
  • 24...280VAC
• Nominal load current:
  • 25A
• Max surge current for 1 cycle:
  • 239A/50Hz
  • 250A/60Hz
• Leakage current:
  • 1mA max with 280VAC voltage
• Dielectric strength:
  • 4000VAC
• Operating temperature:
  • -40...80°C

Download Sensata Crydom series 1 solid state relays technical datasheet
