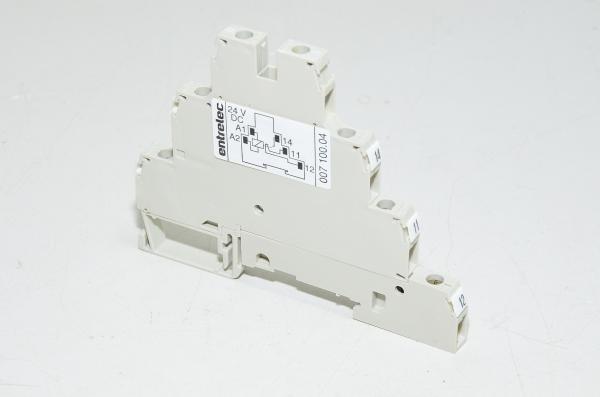

Entrelec 007 100.04 (D4/6 R121L) DIN rail-mounted relay module 24VDC, 250VAC/5A

Entrelec 007 100.04 (D4/6 R121L) is a DIN rail-mounted electromechanical relay module with a 24VDC control coil and one changeover contact (SPDT). The coil is connected via terminals A1 and A2, while the contacts are available at terminals 11, 12, and 14. The module is suitable for industrial automation, control panels, and PLC systems. It features a green LED indicator for coil status indication.

Relay module technical data:

• Product code:
  • Entrelec 007 100.04
  • Entrelec 00710004
• Type:
  • Electromechanical relay module
• Coil voltage:
  • 24VDC
• Contact type:
  • 1x changeover contact (SPDT).
• Max contact current:
  • 5A
• Max kärkien käyttöjännite:
  • 250VAC
• Coil:
  • A1 – A2
• Contacts:
  • 11 = COM (common)
  • 12 = NC (normally closed)
  • 14 = NO (normally open)
• Indicator:
  • Green LED (coil status indication)
• Connector type:
  • Screw terminals
• Max compatible conductor size:
  • 4mm²
• Module width:
  • Approx 6mm, D4/6 system class.
• Color:
  • Light gray RAL7035
• Mounting:
  • 35mm DIN-rail
