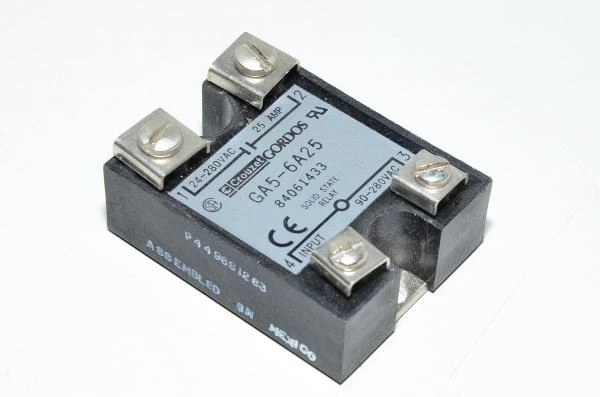

Crouzet Gordos GA5-6A25 solid state relay, input 90-280VAC, load 24-280VAC 25A, SPST-NO

Solid-state relays (opto-couplers) are used as an interface between different signal levels or to isolate one signal from another. Opto-coupler is similar in function to a relay. The modules are often used to enable the low voltage outputs of PLC's to control higher voltage and current loads. For example, a load voltage can be even 250 V and it will be still completely galvanically isolated from the PLC.

Opto-couplers have the following qualities:

• Long life
• No mechanical wear and tear (solid state operation)
• Silent operation
• No contact bounce

Some examples of optocoupler applications:

• Control of DC loads
• Application with electrical isolation
• To convert an NPN output into a PNP output
• To convert an PNP output into a NPN output

Crouzet Gordos GA5-6A25 solid state relay technical information:

• Nominal operating voltage:
  • 90-280VAC
• Operating current:
  • 50mA_rms
• Isolation:
  • Photocoupler
• Output form:
  • SPST-NO (Single pole single throw - Normally open)
• Operation indicator:
  • No
• Nominal load voltage:
  • 24-280VAC
• Nominal load current:
  • 25A
• Max 1-cycle surge:
  • 250A_peak
• Max 1s surge:
  • 75A
• Leakage current:
  • 15mA max
• Dielectric strength:
  • 4000VAC for 1s between input and output
  • 2500VAC between input / output to ground
• Operating temperature:
  • -20...80°C

Download Crouzet Gordos GA5 series and G series solid state relays technical datasheet
