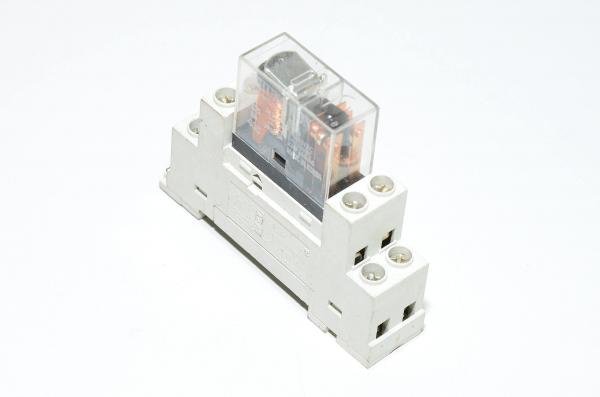

Chung Won CH2-MD24F compact relay 24VDC, DPDT 250VAC 5A

Relays are used as an interface between different signal levels or to isolate one signal from another. Relay is similar in function to a contactor. The modules are often used to enable the outputs of PLC's to control higher voltage and current loads. For example, a load voltage can be even 250 V and it will be still completely galvanically isolated from the PLC.

Relays have the following qualities:

• Cheap
• Small size, but compared to size can still connect large currents and voltages
• Simple construction
• Does not interfere with the controlled signal besides for the contacts resistive effect (in practice no effect on anything)
• Can drive alternating current and directed current loads

Some examples of relay applications:

• Control of AC / DC loads
• Application with electrical isolation
• To convert an NPN output into a PNP output
• To convert an PNP output into a NPN output

Chung Won CH2-MD24F compact relay technical information:

• Nominal operating voltage:
  • 24VDC
• Output form:
  • DPDT (Double pole double throw)
• Max contact voltage:
  • AC:
    • 250V
  • DC:
    • 30V
• Contact max current:
  • 5A
