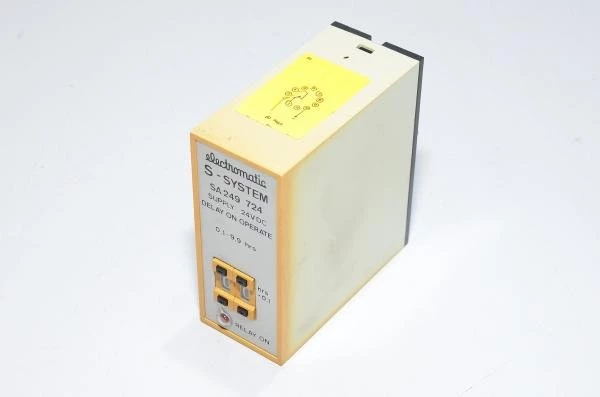

11-pin Sub-Magnal B11A circula base Electromatic S-system SA 249 724 on delay timer relay 24VDC, DPDT 5A 250V contacts

Very simple but pretty convenient timer relay. Refer to technical datasheet for schematics. Panel buttons can used for setting the on delay in hours. Ie. when you apply the power to the device it will turn on it's relay according to the preset delay. Situation will reset after the power is cut out from the timer for min 100ms duration.

Relay technical details:

• Contact type:
  • DPDT
• Contact ratings:
  • 250V
  • 5A
• Operating voltage:
  • 24VDC
• Timer adjustment range:
  • 1...99h
• Timer repeatability:
  • +/-0,005%
• Max time variation within the limits of supply voltage and ambient temperature:
  • +/-0,01%
• Indicator:
  • 1x red LED indicating relay operation
• Plug in socket type:
  • According to IEC 60067 standard's sheet 67-II-18a
    • Socket is also known as:
      • 11pin Sub-Magnal base
      • B11A
      • 11C20
      • Circular 11pin relay socket / relay base

Download Electromatic S-system product catalog
