Weiss TC320--10 TC series indexing table with brake unit, model 1

Weiss TC320--10 TC series indexing table with brake unit, model 1

  • Weiss TC320--10 TC series indexing table with brake unit, model 1
    Weiss TC320--10 TC series indexing table with brake unit, model 1 Weiss TC320--10 TC series indexing table with brake unit, model 1 Weiss TC320--10 TC series indexing table with brake unit, model 1 Weiss TC320--10 TC series indexing table with brake unit, model 1 Weiss TC320--10 TC series indexing table with brake unit, model 1
  • Manufacturer:
    Weiss
    Weiss
  • Model:
    Weiss TC320--10 TC + aluminum disk, model 1
  • Dimension:
    439 x 610 x 201 mm
  • Weight:
    120 kg
  • Availability: 2pcs
  • Condition: Used
  • Price Including VAT: 1674€

  • Ex Tax: 1350€
pcs


Make an offer

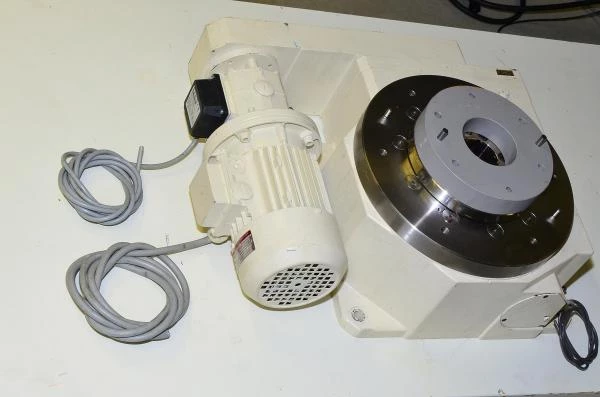

Indexing table from Weiss.

Technical information:

  • Tool plate diameter:
    • Recommended up to 1400mm
  • Dial diameter:
    • 320mm
  • Direction of rotation:
    • Clockwise - counter clockwise or reciprocating
  • Indexings:
    • 10
  • Cycle frequency:
    • Up to 200 cpm, depending on inertia loading and number of stops
  • Operating voltage:
    • 230/400VAC 50Hz
  • Drive motor:
    • 0,25kW
  • Frame size:
    • 71/80
  • Weight:
    • 120kg
  • Drive motor location
    • Position can be changed from sideway position as shown in picture to pointing down.
  • Indexing precision:
    • ± 20" (in degree seconds)
  • Indexing precision in radian measurement (at Ø 320mm dial):
    • ± 0,016mm
  • Max. flatness of dial plate (at Ø 320mm dial):
    • 0,01mm
  • Max. run out:
    • 0,01mm
  • Max. parallelism of rotating plate surface to bottom housing surface (at Ø 320mm dial):
    • 0,03mm
  • Outer / inner diameter of stationary disk:
    • 190mm / 59,5mm (differing dimensions from the datasheet)
  • Height of stationary disk:
    • 21mm
  • Stationary disk’s mounting holes /  hole pattern
    • 6x M8x1.25 / 155mm (differing dimensions from the datasheet)
  • Brake unit:
    • Yes
  • Electrical motor technical details:
    • Motor model:
      • Robert Stahlschmitdt D6R7L
    • Motor protection class:
      • IP54
    • COS φ:
      • 0.66
    • Operating voltage:
      • 50Hz
        • Δ 220...243VAC
        • Y 380...420VAC
      • 60Hz
        • Δ 277VAC
        • Y 480VAC
    • RPM:
      • 50Hz:
        • 920
      • 60Hz:
        • 1100
    • Motor power:
      • 250W
  • 1x M12x1 limit switch
  • Comes with a aluminum disk which is mounted into the tooling plate.

Download Weiss TC-series indexing tables datasheet

Download Weiss TC-series indexing tables operating manual
