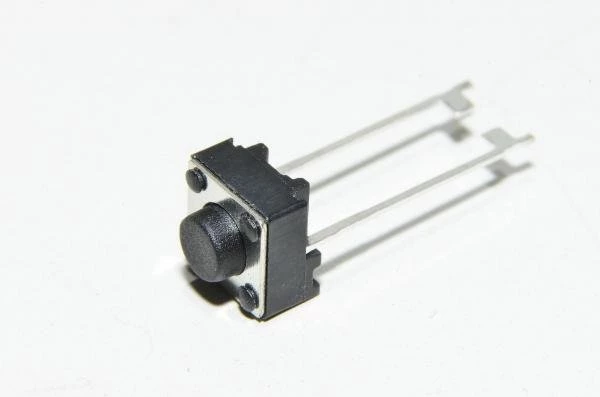

TE Connectivity FSM4JRT 4-1437565-0, 5mm, 5mm, 160g, 1x NO, tactile switch *new*

  • TE Connectivity FSM4JRT 4-1437565-0, 5mm, 5mm, 160g, 1x NO, tactile switch *new*
  • Manufacturer:
    TE Connectivity
    TE Connectivity
  • Model:
    TE Connectivity FSM4JRT 4-1437565-0 *new*
  • Dimension:
    6decimal_point15 x 6decimal_point15 x 18 mm
  • Weight:
    1 g
  • Availability: 25pcs
  • Condition: New
  • Price Including VAT: 0,31€

  • Ex Tax: 0,25€
pcs


Make an offer

A tactile switch is an on/off electronic switch that is only on when the button is pressed or if there is a definitive change in pressure. Another way to consider it, as momentary make or brake switch. As soon as a tactile switches button is released, the circuit is broken.

Tact switches are tactile electromechanical switches for keyboards, keypads, instruments or interface control-panel applications, which require user to get a feedback when the switch is pressed. User receives confirmation of successful switching in a form of a clicking sound and feeling. For these kind of situations tact switches are perfect choice.

Tactile switch technical details:

  • Button height (Measured between bottom of the switch and tip of the stem):
    • 5mm
  • Max contact current:
    • 50mA
  • Switch function:
    • Single push normally open (SPNO) (Single pole single throw SPST)
  • Nominal contact voltage:
    • 24VDC
  • Button operating force:
    • 160g (+/-50g)
  • Switch connections:
    • 5mm hole layout, solderable
  • Diameter of PCB holes:
    • 1mm
  • Materials:
    • Cover:
      • Steel
    • Base:
      • PBT UL94HB
    • Switching element:
      • Phosphor bronze with silver cladding
    • Cap:
      • Nylon 66
  • Operating temperature range:
    • -35...+105°C
  • Electrical life:
    • 100,000 operation cycles

Download TE Connectivity FSM series tactile switches technical datasheet

Write a review

Please login or register to review

Tags: 5mm, switch, PCB button, button, tactile switch, TE Connectivity, tact switch, push button, NO, small button, minibutton, 160g, FSM-series, SPST, 50mA, SPNO
