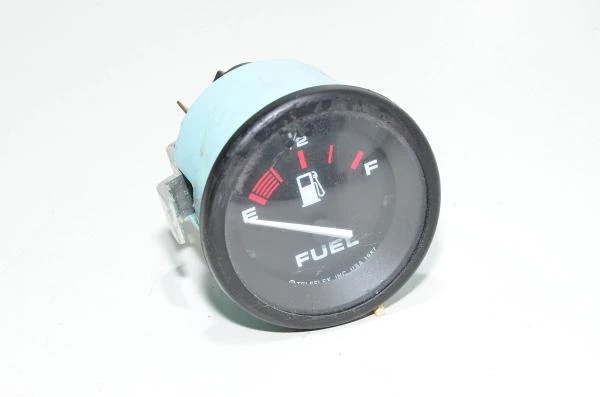

Teleflex 57902 marine fuel gauge 12VDC

The gauge has smart white and red graphics on a black dial background, these very low profile bezels follow the curve of the lense to eliminate water trapping. Design with domed glass sheds water and resists scratching.

Gauge's technical details:

• Features:
  • Black dial, red graduations, white numerals, vivid white pointer staff
  • Scratch resistant curved glass lens, with black, near-flush bezels
  • Enhanced illumination:
    • Through-dial and perimeter lighting for excellent readability at night.
  • Dial Range:
    • E-1/2-F
  • Size:
    • 2"
  • Sender Code:
    • Requires ''F'' type fuel sender
      • This paricular meter is USA type which might work in the following way:
        • Resistance value 240Ω (full)...33Ω (empty)
  • Operating voltage:
    • 12VDC
  • Current Draw:
    • 0.10...0.15A
  • Operating Temperature:
    • -40...+70°C
  • Ingress Protection:
    • IP65
  • Bezel diameter:
    • 60,5mm (2.39")
  • Housing diameter:
    • 52,8mm (2.08")
