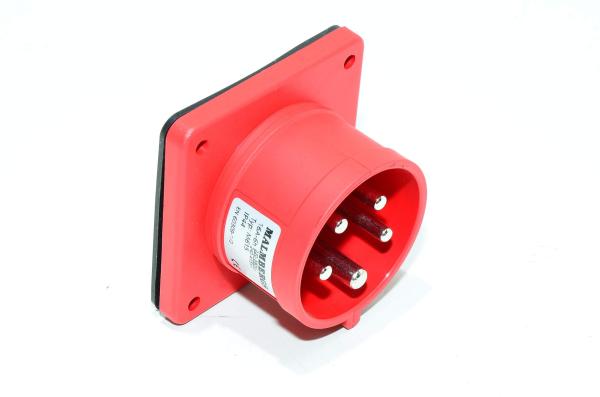

Malmbergs M615 2428658 IEC60309 panel mount red 6h 5pin 16A 3-phase male power connector *new*

3-phase connector according to IEC60309 standard. More commonly known as three-phase power connector.

Connector's technical details:

• Max curr ent per phase pin:
  • 16A
• Max operating voltage:
  • 415VAC
• Number of pins:
  • 5pin (4 pins + protective grounding or 3P+N+E)
• Earth pin location:
  • 6h, ie. 6-o-clock, ie. 180° (hour marking does not refer to max use time with max load)
• Color coding:
  • Red
• Compatible conductor size with pins:
  • 1.5...4mm²
• Installation flange size:
  • 75x75mm
• Installation flange mounting holes:
  • 4x 5mm holes with 60x60mm spacing
• Installation hole diameter:
  • 54mm
• IP rating:
  • IP44
• Compatible standards:
  • IEC60309-1
  • IEC60309-2
  • EN60309-1
  • EN60309-2
  • CEE17
  • IEC309
• Nominal mechanical specifications of the connector:
  • Phase pin diameter:
    • 5mm
  • Phase pin length:
    • 37mm
  • Grounding pin diameter:
    • 7mm
  • Grounding pin length:
    • 37mm
  • Diameter of the circle formed by the pins:
    • 26.5mm
  • Inner diameter of the plug cover:
    • 48.8mm
  • Outer diameter of the plug cover:
    • 56.1mm
  • Radius of the key mechanism on the plug shroud (i.e the radius of the alignment knob on the shroud):
    • 3mm
