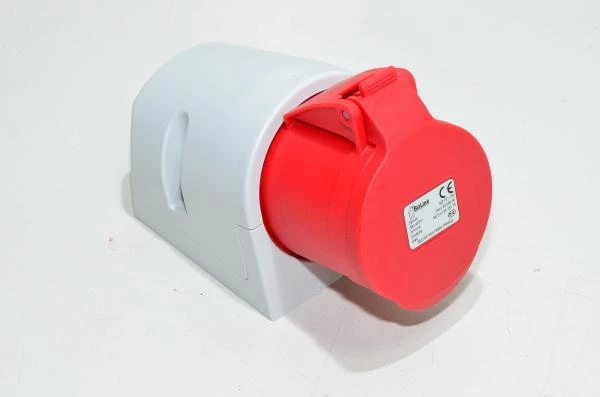

BizLine 701130 wall mounting socket outlet 32A 5p 415V 6h power connector, IP44 M25 *new*

3-phase connector according to IEC60309 standard. More commonly known as three-phase power connector.

Socket's technical details:

• Max curr ent per phase pin:
  • 32A
• Max operating voltage:
  • 415VAC
• Number of pins:
  • 5pin (4 pins + protective grounding or 3P+N+E)
• Earth pin location:
  • 6h, ie. 6-o-clock, ie. 180° (hour marking does not refer to max use time with max load)
• Color coding:
  • Red
• Max compatible conductor size with pins:
  • 25mm²
• Bottom footprint size:
  • 119x171mm
• Bottom installation holes:
  • 4x 5mm holes with 60x60mm spacing
• Cable installation hole thread:
  • On top:
    • M25
  • Underneath:
    • 1x M20 (you need to strike them open)
• IP rating:
  • IP44
• Enclosure material:
  • Polycarbonate
• Compatible standards:
  • IEC60309-1
  • IEC60309-2
  • EN60309-1
  • EN60309-2
  • CEE17
  • IEC309
• Nominal mechanical specifications of the connector:
  • Phase pin diameter:
    • 8mm
  • Phase pin length:
    • 67mm
  • Grounding pin diameter:
    • 10mm
  • Grounding pin length:
    • 67mm
  • Diameter of the circle formed by the pins:
    • 36.5mm
  • Inner diameter of the plug cover:
    • 61,5mm
  • Outer diameter of the plug cover:
    • 69,5mm
  • Radius of the key mechanism on the plug shroud (i.e the radius of the alignment knob on the shroud):
    • 3mm
