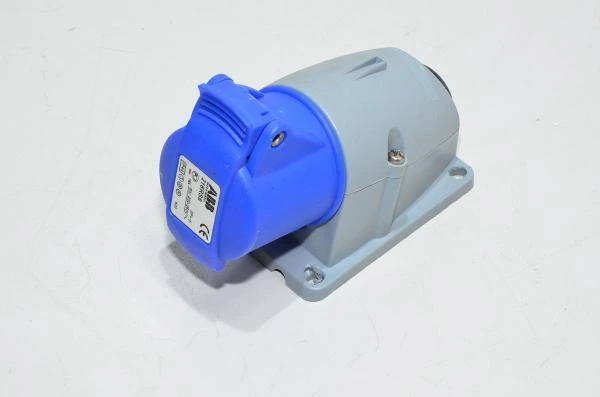

ABB 216RS6 wall mounting socket outlet 16A 200-250VAC 6h power connector IP44

3-phase connector according to IEC60309 standard. More commonly known as three-phase power connector.

Connector's technical details:

• Max curr ent per phase pin:
  • 16A
• Max operating voltage:
  • 200...250VAC
• Number of pins:
  • 3pin (2 pins + protective grounding or 2P+E)
• Earth pin location:
  • 6h, ie. 6-o-clock, ie. 180° (hour marking does not refer to max use time with max load)
• Color coding:
  • Blue
• Bottom installation holes:
  • 4x 5,5mm holes with 75x54mm spacing
• Suitable cable size:
  • 18mm
• IP rating:
  • IP44
• Enclosure material:
  • Polycarbonate
