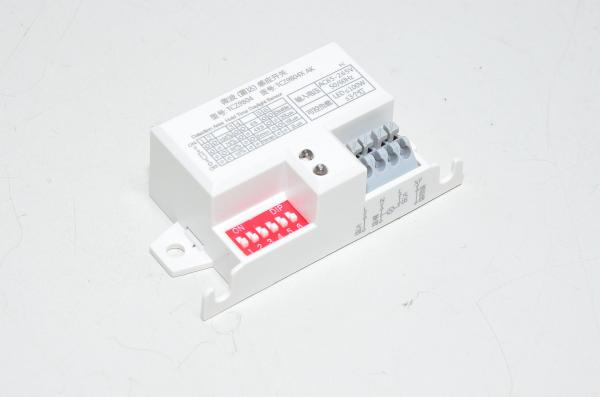

Wireless microwave radar motion sensor switch TCZ9804, body motion detector, adjustable, 85-265VAC, 5.8GHz

The wireless microwave radar movement detector body motion switch is a device used for detecting motion using microwave radar technology. Devices like this are commonly used in indoor and outdoor lighting control systems, security systems, and energy management applications to enhance convenience, safety, and energy efficiency.

Features:

• Microwave radar technology:
  • Uses 5.8GHz microwave signals to detect motion. Microwave radar sensors are known for their effectiveness in various environmental conditions and their ability to penetrate certain materials like glass and wood.
• Adjustable sensitivity:
  • Allows users to adjust the sensitivity of the motion detection according to the specific application and environment.
• Wide voltage range:
  • Operates with a wide voltage range of 85-265VAC, making it suitable for different power systems and regions.
• Wireless:
  • Does not require direct physical connection for data transmission, typically communicating with other devices wirelessly within its range.
• Movement detection:
  • Activates connected devices (such as lights or alarms) automatically when motion is detected within its detection range.
• Body motion switch:
  • Specifically designed to detect human body movements, distinguishing them from other types of motion to reduce false alarms.
• Adjustable features:
  • This could refer to additional adjustable features such as time delay (how long lights stay on after motion stops), ambient light sensitivity (adjusting when the sensor activates based on ambient light levels), and possibly detection range adjustments.

Motion sensor technical details:

• Angle detection:
  • 180°
• Operating voltage:
  • 85-265VAC 50/60Hz
• Charge power:
  • 500W (Led-100W, 3 lights)
• Installation height:
  • Up to 6 meters
• Delay options:
  • 6 sec
  • 45 sec
  • 5 min
  • 15 min
• Options photosensitive:
  • 2Lux
  • 10Lux
  • 30Lux
  • 2000Lux
