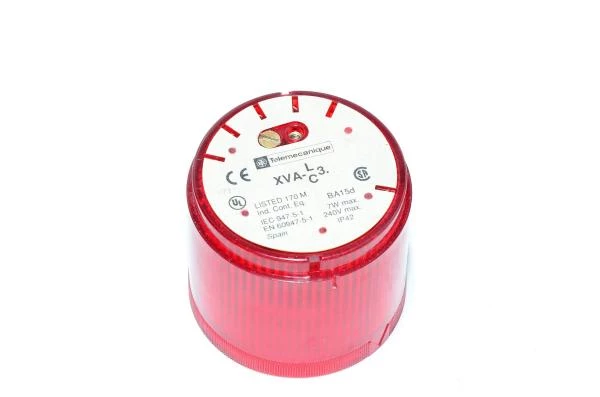

Telemecanique Steadylight XVA-LC34 red warning beacon light module BA15D

Module technical information:

• Type:
  • Steadylight XVA-LC34 red light module
    • Also known as:
      • XVALC3.4R
      • XVALC3-R
      • XVALC3R
• Lamp socket:
  • BA15D
• Max operating voltage:
  • 240VAC/240VDC
• Max lamp power:
  • 7W
• Max operating temperature:
  • -25...70°C
• Lamp module coding method:
  • When stacking the pinout advances by one, ie. module placement in tower defines lamp pins. 5 possibilities in total.
• Module diameter:
  • 70mm
• Module attachment:
  • Screw mount
• Protection class:
  • IP42

Warning light module which is manufactured by Telemecanique. Module is part of XVA series light tower. Collect the pieces that you need and assemble exactly the kind of warning light that you want. The warning beacon is used for alert or just in general to inform the state of industrial automation device. Here is a few thoughts about the use of different colors:

• Red:
  • Device operation has been interrupted by severe error or dangerous situation.
• Yellow:
  • Device has some non fatal error messages.
• Blue:
  • Device raw material storage is empty or requires soon refilling.
• Green:
  • Device operates as it should.
