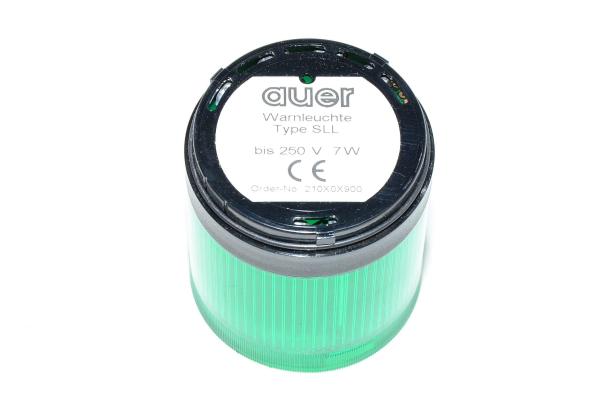

Auer Signal towermodulsignal70 module type SLL 210 506 900 green light module BA15D

Module technical information:

• Type:
  • SLL 210 506 900 green light module
• Lamp socket:
  • BA15D
• Max operating voltage:
  • 250VAC/250VDC
• Max lampp power:
  • 7W
• Max operating temperature:
  • 60°C
• Lamp module coding method:
  • When stacking the pinout advances by one, ie. module placement in tower defines lamp pins. 5 possibilities in total.
• Module diameter:
  • 70mm
• Module attachment:
  • Bayonet mount
• Protection class:
  • IP65

Warning light module which is manufactured by Auer Signalgeräte. Module is part of towermodulsignal70 series light tower. Collect the pieces that you need and assemble exactly the kind of warning light that you want. The warning beacon is used for alert or just in general to inform the state of industrial automation device. Here is a few thoughts about the use of different colors:

• Red:
  • Device operation has been interrupted by severe error or dangerous situation.
• Yellow:
  • Device has some non fatal error messages.
• Blue:
  • Device raw material storage is empty or requires soon refilling.
• Green:
  • Device operates as it should.
