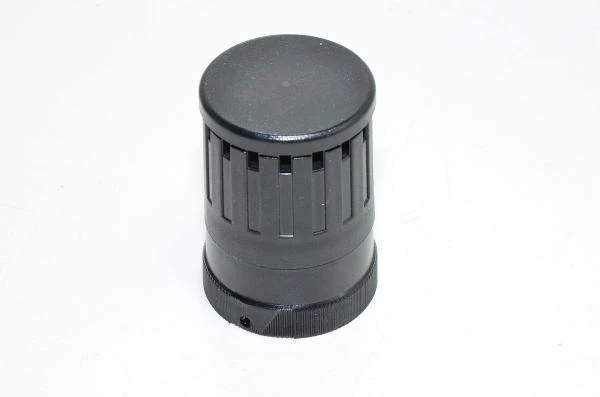

Auer Signal towermodulsignal50 module type VDZ 782500313 piezo buzzer BA15D

Module technical information:

• Type:
  • VDZ 782500313 piezo buzzer
• Module socket:
  • BA15D
• Max operating voltage:
  • 250VAC/250VDC
• Tone type:
  • Continuous and pulsing tone
• Tone frequency:
  • 2800Hz
• Sound pressure level:
  • 88/103dB with DIP-switch selectable
• Tone selection:
  • Externally switchable
• Max operating temperature:
  • 50°C
• Lamp module coding method:
  • When stacking the pinout advances by one, ie. module placement in tower defines lamp pins. 5 possibilities in total.
• Module diameter:
  • 50mm
• Module attachment:
  • Bayonet mount
• Protection class:
  • IP65

Download Auer Signal towermodulsignal50 module series technical datasheet
