Control box 200x200x132mm + Omron E5CS-R1PX digital temperature controller + G3PA-220B-VD solid state relay
- Manufacturer:
Unknown manufacturer - Model:
Control box 200x200x132mm + Omron E5CS-R1PX + G3PA-220B-VD - Dimension:
300 x 300 x 154 mm - Weight:
1720 g - Availability: 1pcs
- Condition: Used
-
Price Including VAT: 194.53€
- Ex Tax: 155€

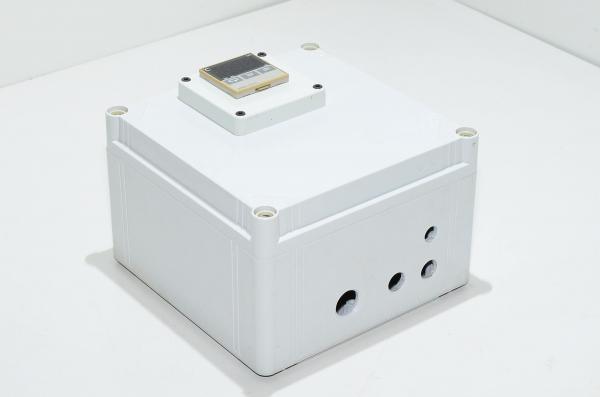

Control cabinet with compact and intelligent digital temperature controller, solid state relay, DIN rail and couple of screw terminal block. Just add wires, heater and sensor and you are up and running.
- Housing:
- Material:
- Polycarbonate (PC) plastic
- Construction:
- 4x plastic screws
- Hinges on the right
- 1x 20,4mm hole
- 2x 15,4mm holes
- 1x 12,4mm hole
- Dimensions:
- 200x200x132mm
- Material:
- G3PA-220B-VD solid state relay:
- Intended use:
- Solid state relay for operating heat elements, with electronic 0 phase switch circuitry .
- Nominal operating voltage:
- 5...24VDC
- Operating current:
- 7mA
- Isolation:
- Phototriac
- Output form:
- SPST-NO
- Nominal load voltage:
- 24...240VAC
- Nominal load current:
- 0.1...10A
- Leakage current:
- 5mA / 100VAC
- 10mA / 200VAC
- Operating temperature:
- -30...80°C
- Ambient humidity:
- 45...85%RH (non condensing)
- Output protection:
- Varistor and snubber
- Intended use:
- Omron E5CS-R1PX digital temperature controller technicaldetails:
- Easy setting using DIP switch.
- Clearly visible digital display with character height of 13.5 mm
- Temperature input:
- Platinum resistance thermometer
- Operating voltage:
- 100...240VAC
- Number of alarm points:
- 1x NO relay outputs 250VAC / 1A
- Output:
- 1x SPDT relay output 250V / 1A
- Power consumption:
- 7VA
Download Omron G3PA series solid state relays technical datasheet
Download Omron E5CS series digital temperature controller technical datasheet
Download Omron E5CS-X series digital temperature controller technical datasheet
Tags: controller box, control enclosure, controller enclosure, control box, solid state relay, G3PA-series, temperature controller, heater controller, heat, heater, platinum resistance thermometer, controller, thermometer, E5CS-series, 250VAC, heating element, Omron, temperature
