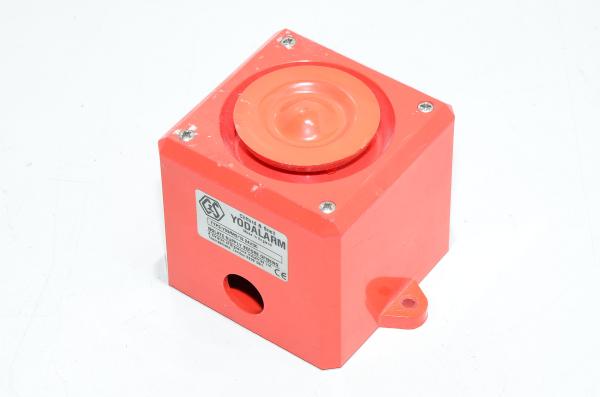

Clifford & Snell Yodalarm Y03/MO/12-24VDC siren

A small siren with a compact cube design, suitable for both indoor and outdoor use, allowing easy installation in various applications. This siren is ideal for fire alarms, security systems, machinery alerts, and emergency signaling, ensuring timely warnings in hazardous situations.

Siren's technical details:

• Operation voltage:
  • 12...24VDC
• Termination:
  • Up to 2,5mm2 cable
• Operating temperature:
  • -25...+70ºC
• Enclosure material:
  • Fire resistant & UV stable UL94-5VB rated ABS
• Protection class:
  • IP66
• Sound pressure level:
  • 105dB(A) Max.
• Volume control adjustment:
  • -18dB
• AC supply:
  • 50/60 Hz

Download Clifford & Snell Yodalarm Y03/MO/12-24VDC siren's technical datasheet
