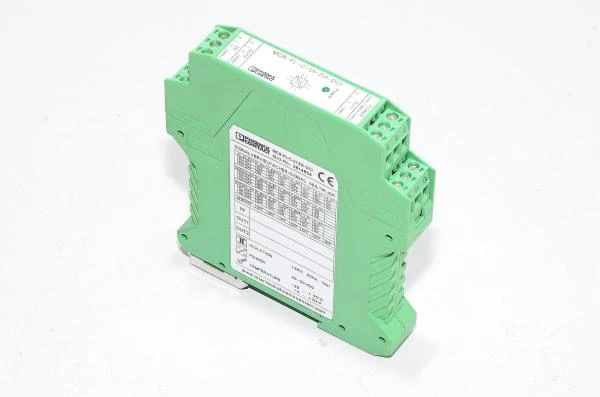

Phoenix Contact MCR-FL-C-UI-2UI-DCI 2814854 signal multiplier *new*

MCR signal multiplier, for doubling and electrical isolation of analog signals. So in layman's terms this thing takes in one type of a signal and then sends out two signals, which vary according to the input signal. The signal types can be selected with DIP switches. So basically one may either use this as an electrical isolator between different signals or extend the functionality by converting input signal to different type of output signals.

Signal converter technical details:

• Number of channels:
  • 1x input
  • 2x output
• Electrical isolation between input and output:
  • Yes
• Limit frequency (3dB):
  • 30Hz
• Max power dissipation:
  • 15mW
• Operating voltage:
  • 20...30VDC
• Max current consumption:
  • <25mA
• Input signal configurable to:
  • 0...20mA
  • 0...10mA
  • 4...20mA
  • 2...10mA
  • 0...10V
  • 1...5V
  • 0...5V
  • 2...10V
• Max input voltage:
  • 30VDC
• Max input current:
  • 50mA
• Output signal configurable to (both outputs configurable independently):
  • 0...10V
  • 0...20mA
  • 0...5V
  • 0...10mA
  • 4...20mA
  • 1...5V
  • 2...10V
• Max output voltage:
  • 15V
• Max output current:
  • 35mA
• Configuration method:
  • 10x DIP-switches on PCB (remember to check and set the desired configurations according to your need!)

Download Phoenix Contact MCR-FL-C-UI-2UI-DCI 2814854 signal multiplier technical datasheet
