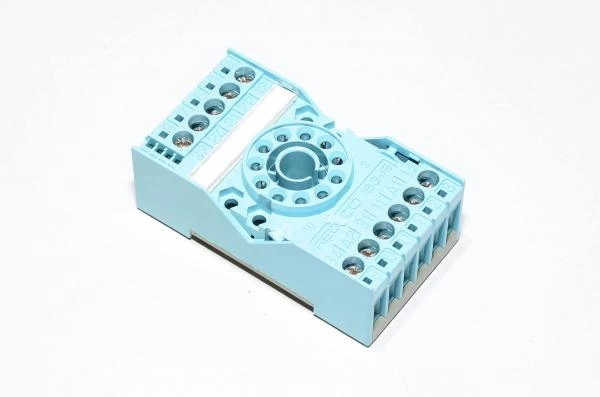

11-pin Sub-Magnal B11A circular relay base Releco S3-B

Relay socket for various standard relays. Relay base allows easy and fast service of a faulty component. Just plug n play methods with this baby.

Relay socket´s technical specifications:

• Rated current:
  • 10A
• Rated voltage:
  • 250V
• Insulation (test voltage V_rms 1min):
  • All terminals / DIN rail:
    • 2,5kV
  • Terminal / Terminal:
    • 2,5kV
• Cross-selection of connecting wire:
  • Single wire:
    • 4mm² or 2x 2,5mm²
  • Multi-wire:
    • 22-14 AWG
• Max screw torque:
  • 1,2Nm
• Screw dimensions:
  • M3
  • Pozidriv / Slot
• Labeling space:
  • Detachable 1...8 DIN / EN
• Mounting:
  • DIN rail or 4x M3 screws
• Operating temperature:
  • -40...60C°
• Plug in socket type:
  • According to IEC 60067 standard's sheet 67-II-18a
    • Socket is also known as:
      • 11pin Sub-Magnal base
      • B11A
      • 11C20
      • Circular 11pin relay socket / relay base
