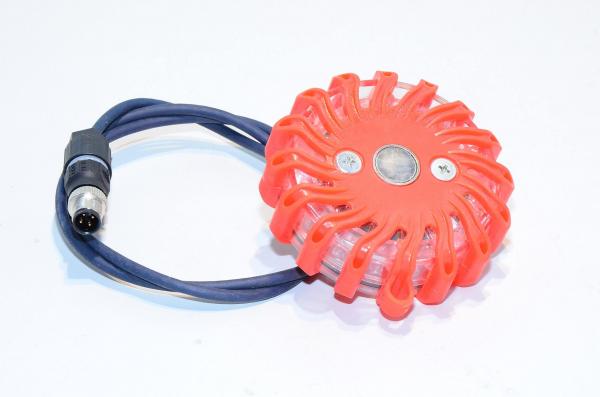

0,5m cable with M12 connector remote operated orange LED disk light with 16x red LEDs and 8x different operating modes and magnet *new*

Warning light, which can be thrown around a bit or slapped on the side of a machinery/vehicle with the help of a magnet. Quite convenient thing to use as a temporal warning light. During the night this will gather attention especially well, but it's also visible during the day.

This unit has a capability for wired remote controlling. In otherwords you can build an application which powers and operated these lights by wire. These lights are custom build for clients and we do not normally keep these in stock. Because of this you can freely specify the cable lenght, connector type (or not if not needed). Specified unit price is for the unit in the picture. In case you want to change the design, we'll agree the price on case by case basis... So contact us and specify your needs.

Warning light technical details:

• Operating voltage:
  • 4,5...36VDC
• Connector pinout:
  • Pin 1 = 4,5...36VDC
  • Pin 2 = Ground to toggle switch mode
  • Pin 3 = Ground
  • Pin 4 = Arms the light for operation when grounded
• Connector:
  • M12 straight A-coded unshielded 4-pin sensor connector, male, plastic, Phoenix Contact Speedcon SACC-MS-4QO-0,75 M SCO 1521591
• Cable:
  • 4x0,34mm² Cu steel blue TPE control cable for energy chains Igus Chainflex CF9.03.04.INI
• Construction:
  • Polycarbonate
  • TPU
  • Center has an integrated magnet for example for attaching into a car's sheet metal
  • O-ring sealed moisture resistant and robust entity
• Way of light implementation:
  • 16x red super bright 5mm LED's in circular arrangement driven in 2x LED groups
• Warning light operation modes (swiched by grounding pin 2):
  • 0 = Light turned off
  • 1 = Rotating light
  • 2 = Burst of 3x flashes
  • 3 = 101010 regular flicker
  • 4 = SOS flashing
  • 5 = All LED's constantly on as dimm
  • 6 = All LED's constantly on as full
  • 7 = 2x LED's on
  • 8 = 4x LED's on
