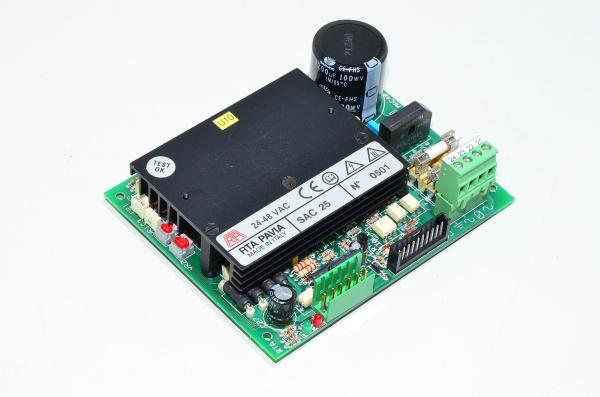

RTA Pavia SAC25 ministepping drive

Introduction:

•     High efficiency bipolar chopper circuit.
•     Protection from motor short circuit, overtemperature and overvoltage.
•     400 to 4000 steps/rev for smooth running at low speeds.
•     Low power upto 6 Amps @ 65V. Drives 23 & 34 frame motors.
•     LEDs for supply voltage, thermal protection, overvoltage and motor fault.
•     Optocoupled signal inputs & outputs for protection.
•     Electronic damping reduces low speed resonance.
•     Suitable for two phase motors, 4, 6 or 8 leads.
•     Powered by simple transformer AC power supply.
•     Compatible with 5V TTL indexers.

Technical details:

• Supply voltage (VAC-RMS) (maximum)
  • 48 - 0 - 48VAC
• Supply voltage (VAC-RMS) (minimum)
  • 24 - 0 - 24VAC
• Motor current (A) (maximum)
  • 3.0A
• Motor current (A) (minimum)
  • 1.7A
• Current for steps (A)
  • 0.4A
• Logic inputs
  • Opto isolated (OFF = 0 -2V or open, ON = 3.5-13V)
  • Step
  • Direction
  • De-energise
• Maximum step frequency
  • 60kHz
• Logic outputs
  • Opto isolated (45V @10mA NPN open collector)
  • Drive fault
• Resolution
  • 400, 800, 1600, 3200, 500, 1000, 2000 & 4000 steps/rev
• Standby current
  • Automatic at 65%
• Motor current
  • 4 settings by DIP switch
• Resonance damping
  • At medium and low speeds
• Operating temperature
  • 0-45ºC (Forced cooling may be required)
• Weight
  • 0,5kg
