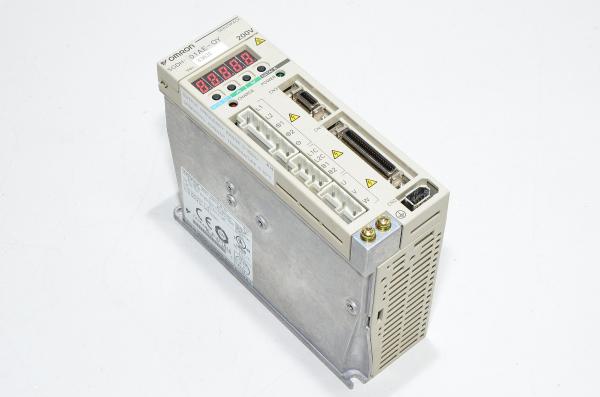

Omron Sigma SGDH-01AE-OY AC servo motor driver with positioning, input 200-230VAC output 1~ 0-200VAC 2,8A 100W

SGDH-01AE-OY is a servo motor driver from the Omron Sigma series designed for precision control in AC servo motor applications. This model is particularly well-suited for light industrial applications, robotics, and automated systems where high-precision motor control is critical.

Key features:

• Control functions:
  • Position control
  • Internal speed control settings
• Auto-tuning
• Monitor
  • Display the driver's operation status on the parameter unit
• Jog operation:
  • Forward/Reverse motor operation can be controlled from the Parameter Unit. Rotational speed can be set in the parameters.
• Electronic gear function (Position control)
  • The number of pulses used to rotate the motor is calculated by multiplying the number of command pulses by the electronic gear ratio. This function is useful in the following kinds of cases.
    • When you want to finely adjust the position and speed of two lines that need to be synchronized
    • When you want to increase the control pulse frequency of a controller with a low pulse frequency
    • When you want to set the movement/pulse to a certain amount, such as 0.01 mm/pulse
• Encoder resolution function
• Software start function (internal speed control settings)
• Pulse smoothing function (Position control)
• Reverse mode
• Brake interlock output
• Overtravel sequence
• Feed-forward and bias functions (Position control)

Technical details:

• Operating voltage (single phase):
  • 200...230VAC
• Output voltage (1 phase):
  • 0...200VAC
• Max output current:
  • 2,8A
• Rated output power:
  • 100W
• Mounting:
  • 3x 6mm holes

Download Omron Sigma SGDH-AE AC servo motor driver series technical datasheet
