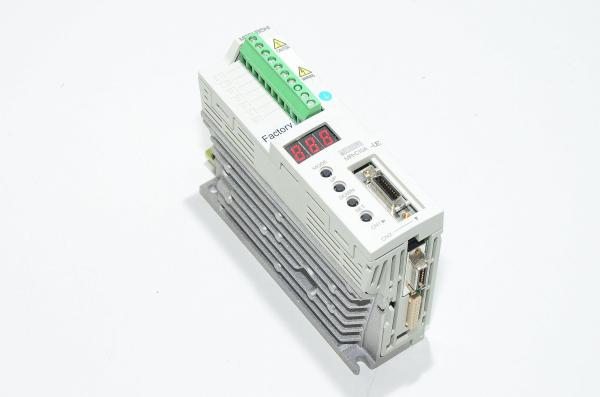

Mitsubishi Melservo MR-C10A-UE AC servo motor driver, input 200-230VAC 1,5A output 3~ 0-170VAC 0.85A 0-360Hz 100W

MR-C Servo Amplifier – Ideal Stepper Replacement

• The compact MR-C offers many benefits of closed loop performance at open loop prices.
• Smooth continuous torque
  • With encoder feedback and speeds of up to 4500 rpm, up to 300% rated torque is achieved from 0 to full speed.
• High dynamic performance
  • For demanding applications with short duty cycles, eliminating cogging and stalling problems to increase production output and reduce down time.
• Real Time Adaptive Tuning
  • Automatic gain settings remove the headache of commissioning closed loop systems, making installation quick and easy.
• Simple test operation
  • Providing jog functions from the unit keys
• Extensive protective functions
  • To prevent damage to the amplifier and motor
• Serial communications interface (accessory)
  • Option with Windows based set-up software providing advanced commissioning and troubleshooting tools

Technical details:

• Operating voltage (single phase):
  • 200...230VAC
• Max input current:
  • 1,5A
• Output voltage (3 phase):
  • 0...170VAC
• Output frequency:
  • 0...360Hz
• Max output current:
  • 0.85A
• Rated output power:
  • 100W
• Mounting:
  • 2x 5mm holes:
• Connections:
  • I/O signal connector
  • Encoder connector
  • RS-232C option unit connector
  • Main circuit terminal block
